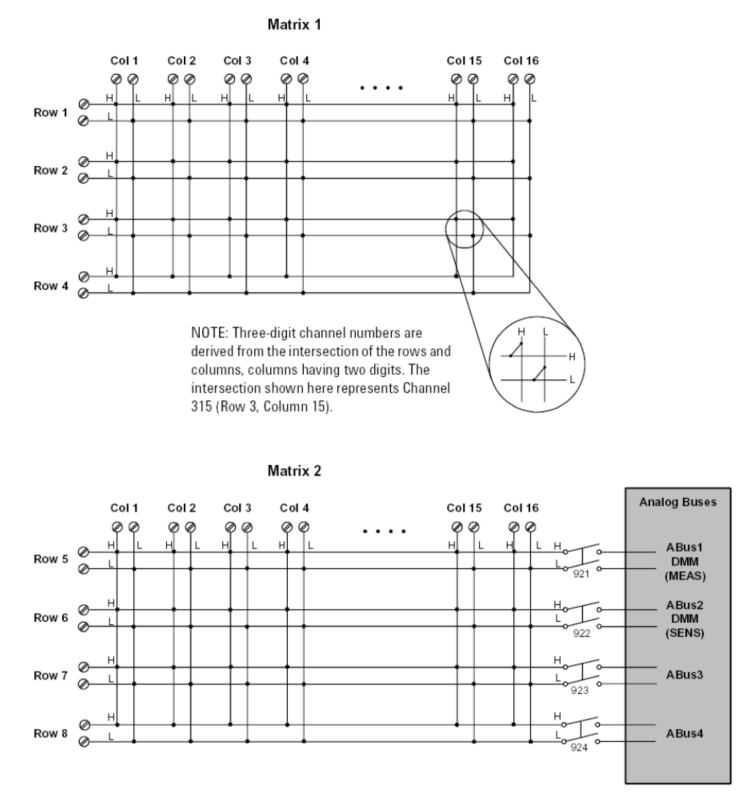

The 34932A dual 4x16 armature matrix contains two matrices, each with 64 2-wire crosspoint latching armature relays organized in a 4- row by 16- column configuration. Every row and column are made up of two wires each, a high (H) and a low (L). Each crosspoint relay has a unique channel number representing the row and column that intersect to create the crosspoint. For example, channel 315 represents the crosspoint connection between row 3 and column 15 (all columns consisting of two digits; in this case the digits are 15). See the 34932A simplified schematic.
You can connect any combination of inputs and outputs at the same time. However, only Matrix 2 in this module connects to the Analog Buses. By closing channels 921 and 922 you can connect rows 5 and 6 respectively to the internal DMM of the 34980A mainframe for voltage and resistance measurements. You can connect multiple matrix modules externally and/or through the Analog Buses for applications that require large matrices. For information on linking multiple matrix modules, refer to the Agilent 34980A User's Manual.
When the power is off, matrix relays maintain state, and Analog Bus relays open.
Warning: Refer to the Agilent 34980A User's Manual for more information including terminal block wiring and safety information.
Notes:
Matrix 1 and Matrix 2 are electrically separate from one another.
Notes:
Matrix Relays: Armature latching, Analog Bus Relays: Armature non-latching
