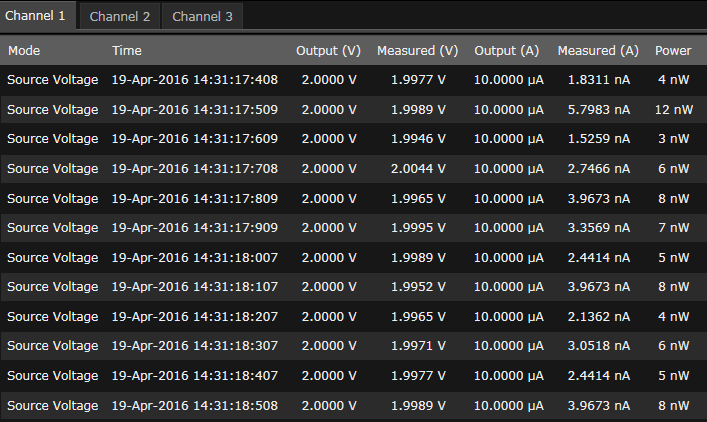

The measurement results panel displays the measurement readings when data logging is enabled/started. It displays each channel measurements of up to 500 measurement readings. Click each channel tab to view the measurement readings for that channel.
The readings are displayed in a First-In First-Out (FIFO) manner. The results panel will be refreshed after every 500th reading (previous 500 readings will be deleted from the panel).
The results panel records the mode, timestamp, output voltage, measured voltage, output current, measured current, and average power.

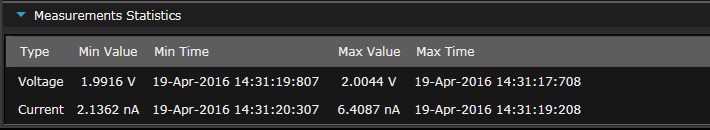

A Measurements Statistics panel drop-down is provided under the measurement results panel view. This panel summarizes important measurement information for the current channel measurement results panel view.
This panel provides the minimum measured voltage and time, maximum measured voltage and time, minimum measured current and time, and maximum measured current and time.
