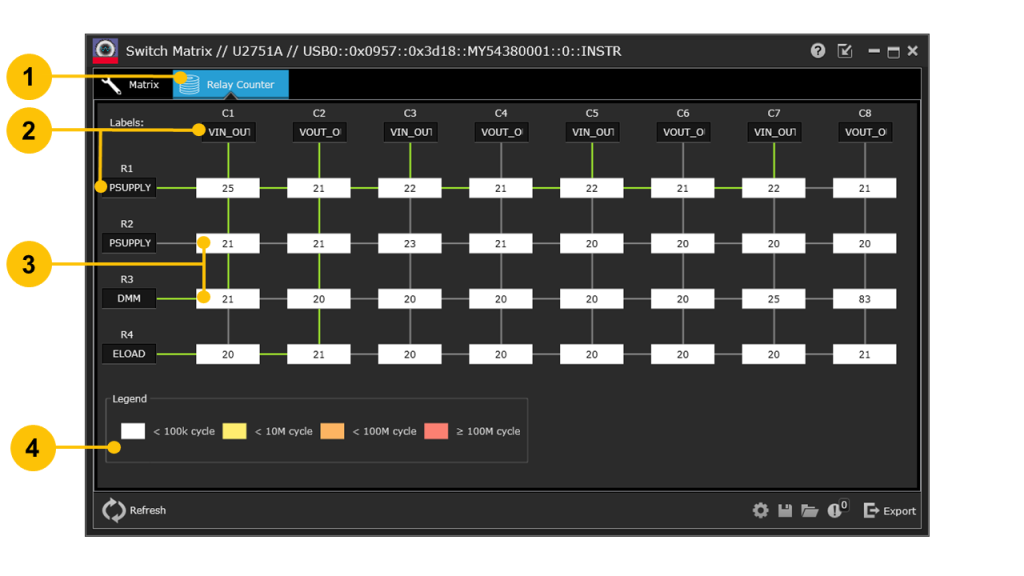

Using Relay Counter Tab

Select the Relay Counter tab to view relay usage.
Display the row and column names for the respective port or terminal keyed in the Matrix tab.
Display the lifespan of the relay with the background color indicating the relay cycle. You can carry out preventive maintenance by replacing relays that are at the end of their lifespan.
Describe the colors of the relay cycles in the display.

Note: Replace the relay when the relay cycle is ≥100M cycle.
