Standard Test Setup
Use the following equipment test setup for automated test sequence.
Required Equipment
|
Test Equipment |
Model Number |
|
Synthesized Signal Generator |
E8267D |
|
Power Meter |
E4419B |
|
Power Sensor |
E9304A |
|
Power Splitter |
11667A |
|
6 dB Fixed Attenuator |
8491A Option 006 |
|
1 dB Step Attenuator |
8494H |
|
10 dB Step Attenuator |
8496H |
|
Attenuator Driver |
11713A |
|
Attenuator Interconnect |
11716A |
|
Adapter, Type-N (m) to Type-N (m) |
1250-1475 |
|
Cable, Type-N (m) |
11500C |
|
Cable, BNC |
10503A |
|
Cable, Viking Attenuator Control |
8120-2703 |

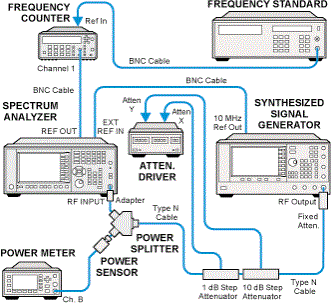

Standard Test Setup
Standard Test Setup for Tracking Generator Option
