RF High Band Channel Flatness Adjustment

M9384B with option F32 or F44 only

This adjustment characterizes the RF chain with baseband 1 GHz band scanning through the full RF frequency with the limited RF spacing from 19.5 GHZ to 44 GHz.

Required Test Equipment

Test Equipment

Recommended Model Number

Alternate Model Number

Power meter

N1914B

N1913B

N1914A1

N1912A

E4419A2
E4419B2

Power sensor 1

N8488A

None
  1. N1914A power meters with serial number prior to MY53040007 require Service Note N1914A-07 which fixes a power supply ground loop. The ground loop injects noise into the measurement circuits which can cause unstable measurements at low (-30 dBm) power levels.
  2. Requires firmware A2.09.01 or greater when using with N-series power sensors.

Connection Setups

Channel 2 setups apply only to signal generators with Option 002 which adds a second channel. Channel 2 tests/adjustments will be run after all Channel 1 tests/adjustments have been run.

Flexible power sensor channel assignment

This test/adjustment uses flexible power sensor channel assignment and will identify the channel that a power sensor is connected to using the ability of "smart" sensors such as the N848xA and U848xA series to report their full model and serial number.

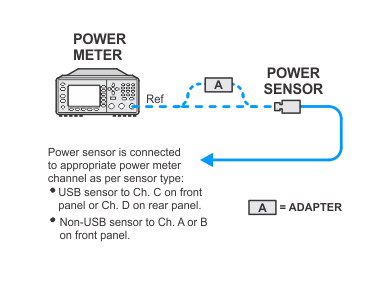

Power sensor calibration

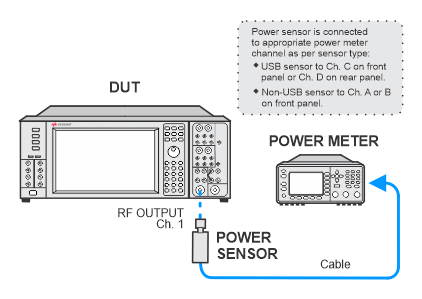

Setup, channel 1

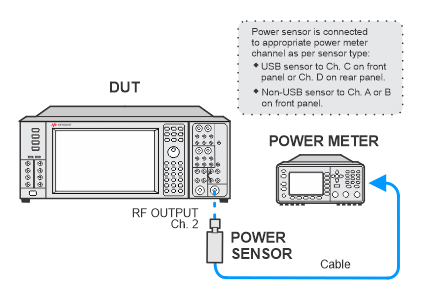

Setup, channel 2
