CalReady Refresh Functional Test

This test applies to the following models:

The CalReady feature is the most basic measurement in Fieldfox. This test updates the CalReady default values as described in the Fieldfox datasheet. A simple S11 (and S22 for port 2) measurement is performed to verify that the defaults are appropriate.

Required Test Equipment

Test Equipment

Recommended Model Number

ECal Module, 2.4 mm

N4693D Options 0DC, M0F

Short, 2.4 mm (f)

85056-60021



Connection Setups

The following notes apply to illustrations in the FieldFox Help:

  • Only a single representative model will be shown.
  • Some illustrations may differ than those in TME.

  • For procedures that apply to multiple ports, illustrations will show the setup on only one test port.

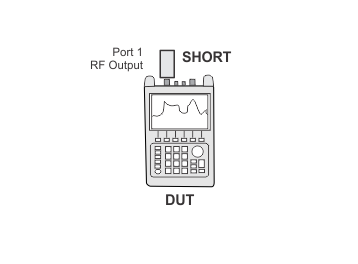

CalReady Refresh Test Setups
