Calibration Coefficients Performance Test

This test verifies the network analyzer's uncorrected test port characteristics, and verifies the Uncorrected System Performance specifications. A series of 2-port calibrations is performed. Two full SOLT 2-port calibrations are performed for each port pair on the PNA. The test results are contained in the error terms resulting from the calibrations that are performed during the test.

Refer to the PNA service guide for your model for additional information about calibration coefficients and error terms.

This test process will reset the cal kit definitions to factory defaults; therefore custom cal kit definitions will be lost.

For troubleshooting help, see Calibration Coefficient Troubleshooting.

Required Test Equipment

Below is the required test equipment separated by connector type. Select the link that applies to the connector type for your model.



For Type-N Connector PNA Models

E8356A, E8357A, E8358A
E8801A, E8802A, E8803A
N3381A, N3382A, N3383A

Test Equipment

Recommended Model

Alternate Model

RF cable Type-N (m) to Type-N (m)

N6314A

8120-8862

Calibration kit, Type-N

85032F
or
85032B if < 6 GHz

n/a

For 3.5 mm Connector PNA Models

E8362A, E8362B, E8362C

Test Equipment

Recommended Model

Alternate Model

RF cable, 3.5 mm (f) to 3.5 mm (f)

85131-60013

85131-60010
(not for 4-port)

Calibration kit, 3.5 mm

85052B1
85052D1

N4691-60004 ECal
(order as N4691B-M0F)

N4691-60001 ECal
(order as N4691A-M0F)

N4691-60008 ECal
(order as N4691B-H33)

  1. When a calibration may be done with or without sliding loads, using sliding loads improves the accuracy and decreases the measurement uncertainty of the test results.

For 2.4 mm Connector PNA Models

E8363A, E8363B, E8363C
E8364A, E8364B, E8364C

Test Equipment

Recommended Model

Alternate Model

RF cable, 2.4 mm (f) to 2.4 mm (f)

85133-60016
(more flexible)

85133-60002
(less flexible)

Calibration kit, 2.4 mm

85056A

N4693-60001 ECal
(order as N4693A-M0F)

For 1.85 mm CSonnector PNA Models

E8361A, E8361C

Test Equipment

Recommended Model

Alternate Model

RF cable, 1.85 mm (f) to 1.85 mm (f)

N4697-60100

none

Calibration kit, 1.85 mm

85058B

N4694-60001 ECal
(order as N4694A-M0F)



Connection Setups

Due to the complexity of the PNA family of analyzers, the following notes apply to illustrations in the PNA Help:

  • Only a single representative model will be shown.
  • Some illustrations may differ than those in TME.
  • For procedures that apply to multiple ports, illustrations will show the setup on only one test port.



Because of the variations possible with mechanical calibration setups, illustrations in TME and the Help will only show Ecal setups.

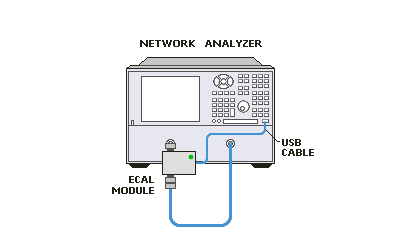

All Error Terms with Ecal Measurement

Thru Measurement
