System Crosstalk Performance Test

This test measures the signal leakage between a pair of ports during a ratioed through measurement, and verifies the Test Port Input – Crosstalk specifications.

A crosstalk measurement is made for each direction on each pair of ports. Because the power level used for testing can vary with frequency, the test is performed in frequency ranges or segments. When testing a given frequency range, the power level of the driving port is set to the lesser of either the maximum specified power-level for the driving port, or the maximum input power-level for the receiving port. Each frequency segment uses 101 points or less.

For troubleshooting help, see System Crosstalk Troubleshooting.

Required Test Equipment

Below is the required test equipment separated by connector type. Select the link that applies to the connector type for your model.



For Type-N Connector PNA Models

E8356A, E8357A, E8358A
E8801A, E8802A, E8803A
N3381A, N3382A, N3383A

Test Equipment

Recommended Model

Alternate Model

RF cable Type-N (m) to Type-N (m)

N6314A

8120-8862

Calibration kit, Type-N
(only shorts are used)

85032F

n/a

Adapter Type-N (m) to Type-N (m)

1250-0778

equivalent

For 3.5 mm Connector PNA Models:

E8362A, E8362B, E8362C

Test Equipment

Recommended Model

Alternate Model

RF cable, 3.5 mm (f) to 3.5 mm (f)

85131-60013

85131-60010

Calibration kit, 3.5 mm
(only shorts are used)

85052B

none

Adapter 3.5 mm (f) to 3.5 mm (f)
(may come from cal kit)

83059B

1250-1749

For 2.4 mm Connector PNA Models:

E8363A, E8364A, E8363B, E8364B

Test Equipment

Recommended Model

Alternate Model

RF cable, 2.4 mm (f) to 2.4 mm (f)

85133-60016
(more flexible)

85133-60002
(less flexible)

Calibration kit, 2.4 mm
(only shorts are used)

85056A

none

Adapter 2.4 mm (f) to 2.4 mm (f)
(may come from cal kit)

11900B

equivalent

For 1.85 mm Connector PNA Models:

E8361A, E8361C

Test Equipment

Recommended Model

Alternate Model

RF cable, 1.85 mm (f) to 1.85 mm (f)

N4697-60100

none

Short, 1.85 mm (f)
(qty. 2) (may use shorts from 85058B cal kit)

85058-60105

85058-60106



Connection Setups

Due to the complexity of the PNA family of analyzers, the following notes apply to illustrations in the PNA Help:

  • Only a single representative model will be shown.
  • Some illustrations may differ than those in TME.
  • For procedures that apply to multiple ports, illustrations will show the setup on only one test port.

Thru Measurement Setup

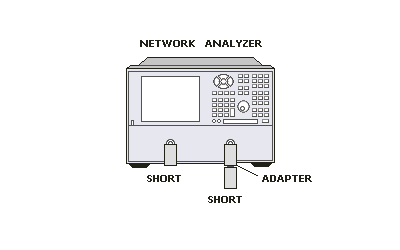

Crosstalk Measurement Setup
