Zero Set

The zero set test verifies that a minimal amount of residual offset error is present after zeroing has been performed. The offset error is caused by contamination from several sources including the noise of the power sensor module itself. Zero set is the difference between the power level indicated by the UUT—after executing zeroing—and true zero power. Ideally this difference should be zero.

Required Test Equipment

Test Equipment

Recommended Model Number

Option 504

Option 518

Option 526

Option 550

Power Meter

N1914A1

X

X

X

X

50Ω Termination, 3.5 mm

902D

X

X

X



50Ω Termination, 2.4 mm

901D







X

Adapter, 3.5 mm (f) to Type-N (m)2

08485-60005





X



Adapter, 2.4 mm (f) to Type-N (m)2

08487-60001







X
  1. The N1914A power meter requires minimum firmware version A.01.15 or above to fix a power linearity accuracy issue.

  2. Adapter intended for use only at 1 mW, 50 MHz power reference of the power meter.

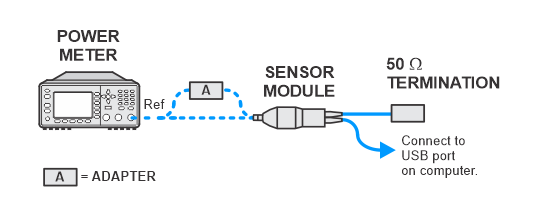

Zero Set Test Setup
N5532A/B

Zero Set Test Setup
U5532C



Power Settling Timer



Power Meter and Power Sensor Module Calibration
N5532A/B

Power Meter and Power Sensor Module Calibration
U5532C
