IF Bandwidth Filter Switching Uncertainty Performance Test

(M9393A)

This test measures the amplitude error when switching between the 40 MHz IF Filter path and the 100/160 MHz IF Filter Path. The M9393A has two 40 MHz IF Filter paths: Standard and Alternate. The 40 MHz Alternate IF Path is only used below 3.6 GHz. The 40 MHZ IF path selection (Standard/Alternate) is managed by the M9393A software. This test is run at two frequencies. One test frequency will test the 40 MHz Standard IF Path, and the other frequency will measure the 40 MHz Alternate IF Path. If the M9393A has a Preamplifier option installed, the test will be repeated with the Preamplifier turned on.

The M9393A has four IF Paths:

Option

IF Filter Path

Analysis BW

IF Frequency

Alternate IF Path

40 MHz

40 MHz

326 MHz

B04 (on all units)

40 MHz

40 MHz

240 MHz

B10

160 MHz

100 MHz

300 MHz

B16

160 MHz

160 MHz

300 MHz



Click here for troubleshooting help.

Required Test Equipment

Test Equipment1

Recommended Models2

Signal generator

PSG models
(see equipment list)

Fixed attenuator, 20 dB

8490D Opt 020

Frequency reference module

M9300A
  1. Refer to the main required equipment list for a list of available adapters and cables determined by the source ETE configuration.
  2. Refer to the main required equipment list for alternative models.

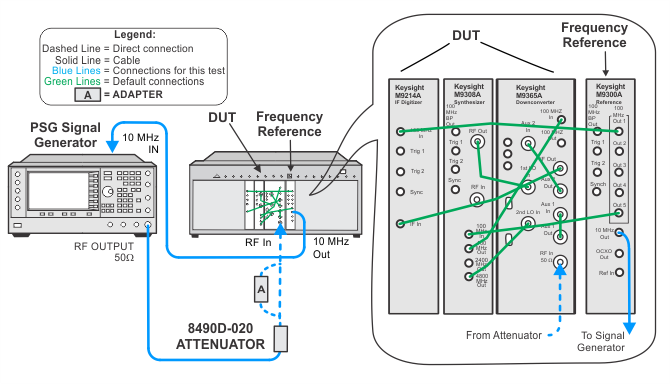

Connections and Setup Procedures
