Power Level Accuracy Performance Test

This test measures the difference between the nominal and actual power delivered by the M9309A.

Click here for troubleshooting help.

Required Test Equipment

Test Equipment

Recommended Models

Power meter

N1914A

Power sensor

N8482A

Adapter, Type-N (f) to 3.5 mm (m)

E9304A H20

Frequency reference module

M9300A

Connections and Setup Procedures

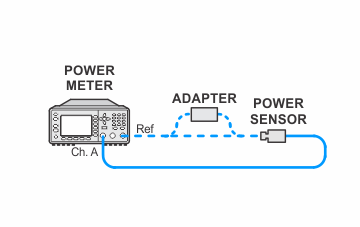

Setup for Power Meter Calibration

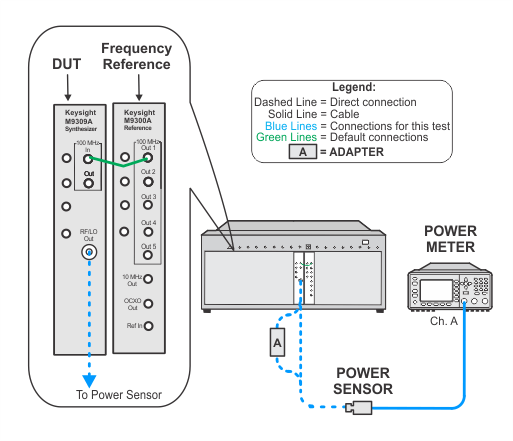

Setup for Power Level Accuracy
