Opt. 005 Required Equipment

USB or Network CD Drive, or Internet Connection needed to install software

Personal Computer (PC)

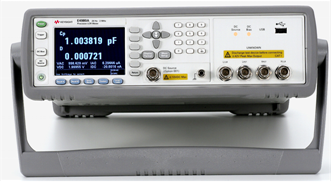

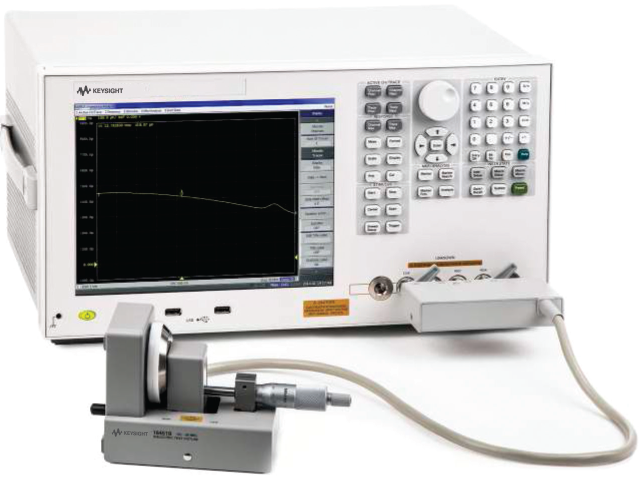

E4980A/AL/E4990A with 16451B

• E4980A/E4990A
• 16451B

E4980A/AL/E4990A with 16452A

• E4980A/AL/E4990A
• 16452A
• Fixture stand (not shown)
• Four terminal pair cables (not shown)

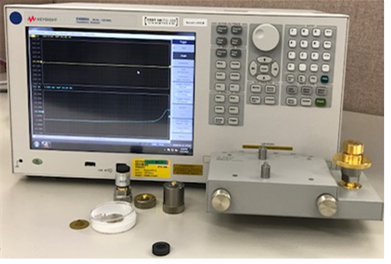

E4990A with 16454A

• E4990A
• 16454A
• 42942A adapter
• 7 mm calibration kit
• Fixture holder
• MUT holder
• MUT (magnetic material)
• Tweezers

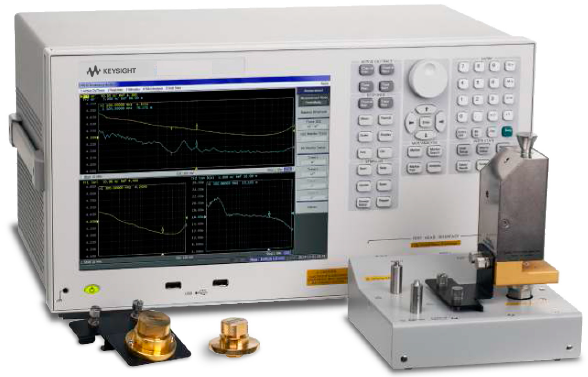

E4991B with 16453A

• E4991B
• 16453A
• Test head
• Fixture holder
• Load
• MUT (dielectric material)
• Tweezers

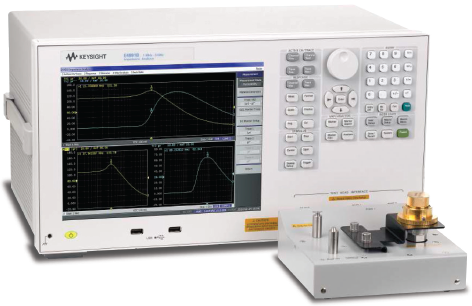

E4991B with 16454A

• E4991B
• 16454A
• 7 mm calibration kit
• Test head
• Fixture holder
• MUT holder
• MUT (magnetic material)
• Tweezers
