Opt. 007 General Overview

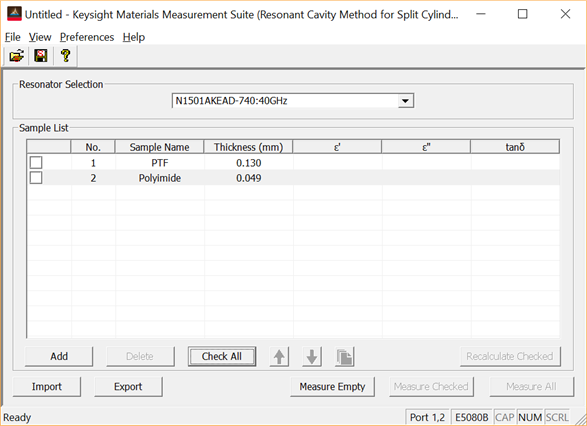

Version 2020 adds the Resonant Cavity Method for Split Cylinder Resonators (Opt. 007). The following is the GUI for Opt. 007.

Edit sample name and thickness by clicking on it. Only the following letters and numbers are supported in sample name.

"abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789.[]()_-+"

Only the following numbers and decimal point are supported in sample thickness (in millimeter unit).

"0123456789."

Supported Instruments

ENA:

• E5080B

• E5063A

• E5071C

PNA :

• N5231/32/33/34/35/39A

• N5231/32/33/34/35/39B

• N5221/22/24/25/27A

• N5221/22/24/25/27B

• N5241/42/44/45/47A

• N5290/1A

• N5241/42/44/45/47B

• N5251A

Steamline:

• P500xx

• P502xx

• P937xx

PXI:

• M937xx

• M980xx

Supported Fixtures

• N1501AKEAD-710

• N1501AKEAD-720

• N1501AKEAD-724

• N1501AKEAD-728

• N1501AKEAD-735

• N1501AKEAD-740

• N1501AKEAD-750

• N1501AKEAD-760

• N1501AKEAD-780
