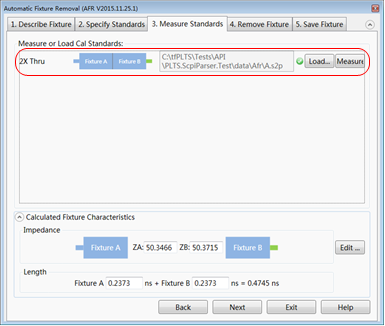

(Read-Write) This command loads the calibration standards data from a file.
Parameters
<char>
Standards type. Choose from:
THRU- 2X Thru.
STHRu - Second 2X Thru.
FDUT - Fixtured DUT.
AOPen - Fixture A Open.
BOPen - Fixture B Open.
ASHort - Fixture A Short.
BSHort - Fixture B Short.
OPA1, OPA2, ..., OPA32 - A Opens for multi-port AFR.
OPB1, OPB2, ..., OPB32 - B Opens for multi-port AFR.
SHA1, SHA2, ..., SHA32 - A Shorts for multi-port AFR.
SHB1, SHB2, ..., SHB32 - B Shorts for multi-port AFR.
THA1, THA2, ..., THA32 - 2X Thrus for multi-port AFR.
THB1, THB2, ..., THB32 - Second 2X Thrus for multi-port AFR.
<string>
File path of existing measurement data (touchstone 1.0, touchstone 2.0, or citifile).
<p1> - Mapped PNA Port 1. Optional parameter.
<p2> - Mapped PNA Port 2. Optional parameter.
<p3> - Mapped PNA Port 3. Optional parameter.
<p4> - Mapped PNA Port 4. Optional parameter.
Examples
:AFR:STANdard:MEASure AOPen
:AFR:STANdard:LOAD AOPen,'C:\open.s1p'
Query Syntax
:AFR:STANdard:LOAD? AOPen
Return Type
String
Default
Empty
