:AFR:STANdard:MEASure <char>[,<p1>][,<p2>][,<p3>][,<p4>]

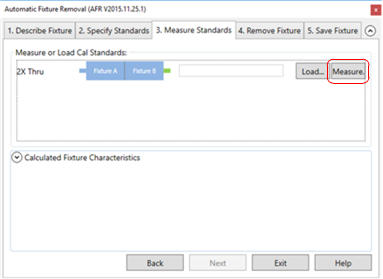

(Write-Only) This command measures the calibration standards.

Parameters

<char>

Choose from:

THRU- 2X Thru.

STHRu - Second 2X Thru.

FDUT - Fixtured DUT.

AOPen - Fixture A Open.

BOPen - Fixture B Open.

ASHort - Fixture A Short.

BSHort - Fixture B Short.

<p1> - Mapped PNA Port 1. Optional parameter.

<p2> - Mapped PNA Port 2. Optional parameter.

<p3> - Mapped PNA Port 3. Optional parameter.

<p4> - Mapped PNA Port 4. Optional parameter.

Examples

:AFR:STANdard:MEASure AOPen
