(Read-Write)

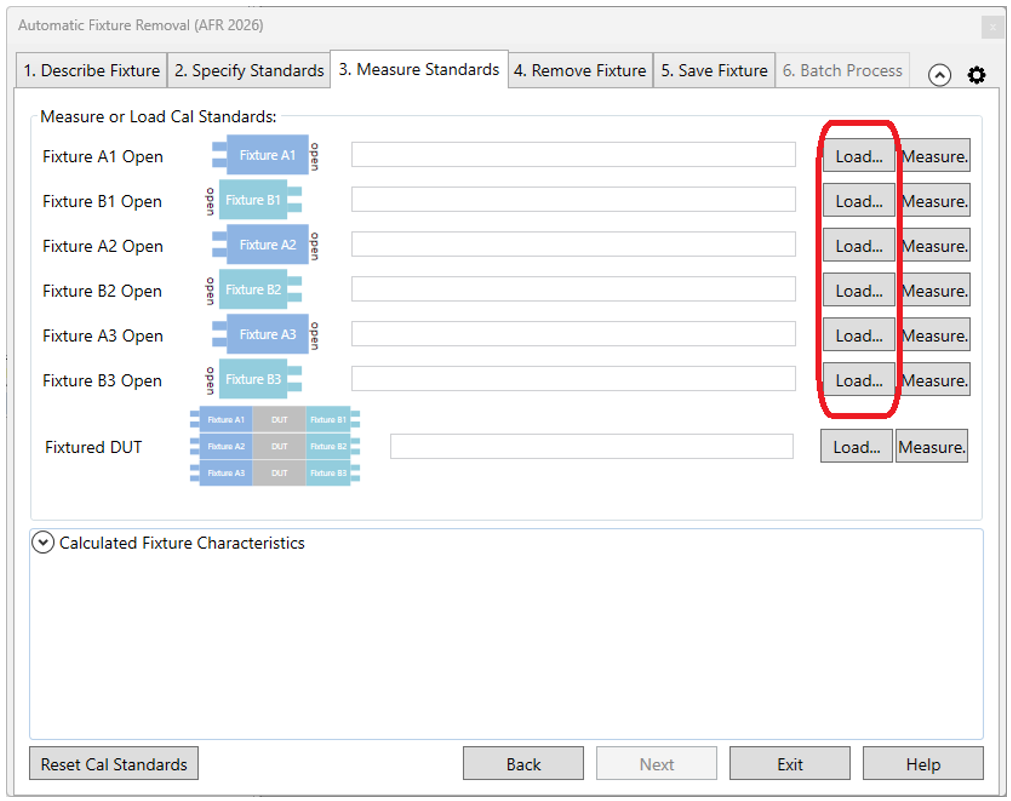

This command loads the calibration standards for the multi-port configuration.
Parameters
<fixSelect>
Selected fixture. Choose from:
AFIXture - Fixture A.
BFIXture - Fixture B.
<fixNum>
Fixture numbers from 1 to 32.
<stanType>
Standard Types: OPEN, SHORt or THRU.
[<fileName>]
Calibration standard file path to load.
[<p1>], [<p2>], [<p3>], [<p4>]
Optional port numbers. If not given, default port numbers will be used.
Examples
:AFR:STAN:NPORt:LOAD AFIXture, 1, OPEN, ‘C:/Temp/open.s1p’
Query Syntax
:AFR:STAN:NPORt:LOAD?
Return Type
String
Default
