(Read-Write)

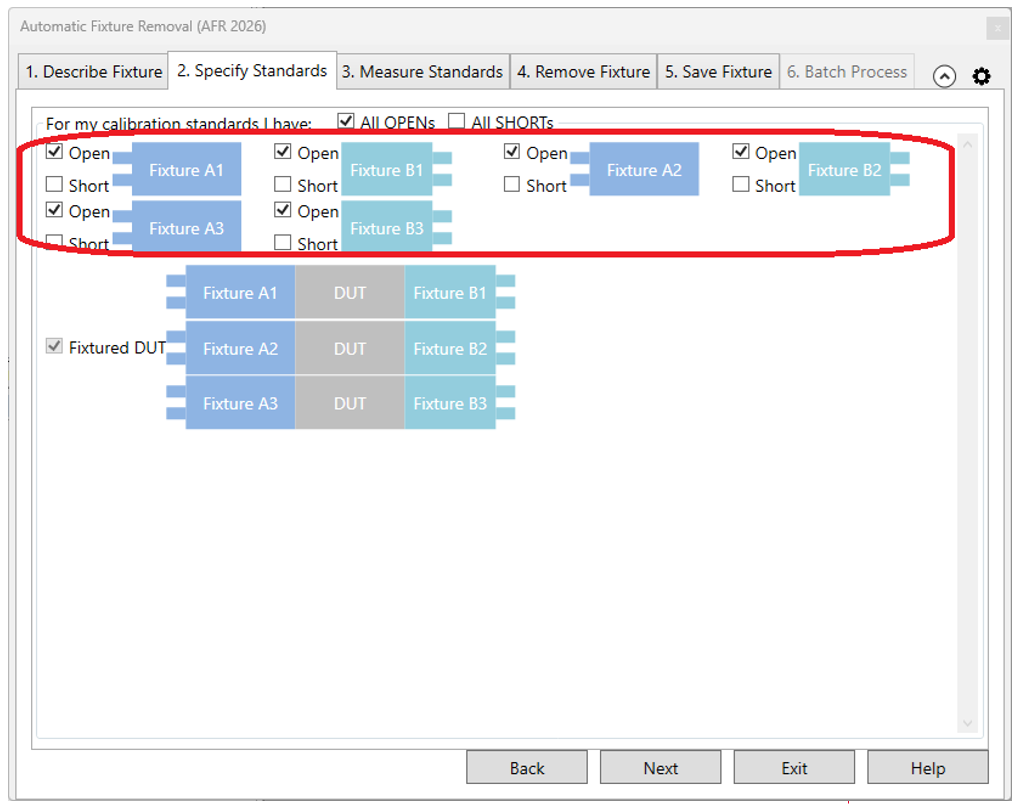

This command chooses the calibration standards for the multi-port configuration.
Parameters
<fixSelect>
Selected fixture. Choose from:
AFIXture - Fixture A.
BFIXture - Fixture B.
<fixNum>
Fixture numbers from 1 to 32.
<stanType>
Standard Types: OPEN, SHORt or THRU.
<isOn>
ON or OFF. It indicates whether this standard will be used by AFR calculation.
Examples
:AFR:STAN:NPORt:USE BFIXture, 1, OPEN, ON
Query Syntax
:AFR:STANdard:NPORt:USE? <fixSelect>, <fixNum>, <stanType>
Return Type
Boolean
Default
OFF
