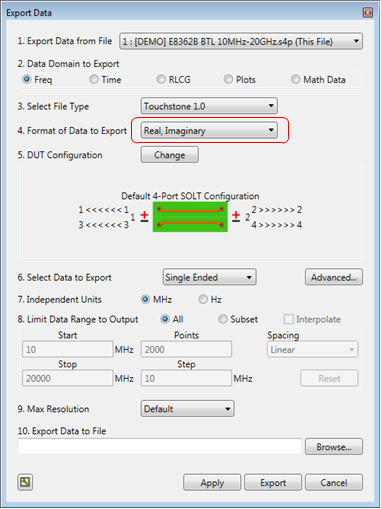

(Read-Write) This command specifies the data format to export.
Parameters
<char>
For frequency domain choose from:
For text file types, choose from:
RI - Real, imaginary.
MLOGarithmic - Log magnitude
MLINear - Linear magnitude
PHASe
UPHase - Unwrapped phase
GDELay - Group delay
VSWR
RIMPedance - Impedance real
IIMPedance - Impedance imaginary
For other file types, choose from:
MA - Linear magnitude, angle.
DB - Log magnitude, angle.
RI - Real, imaginary.
For time domain choose from:
IReal - Impulse real.
IVolts - Impulse volts
ILOG - Impulse log
SReal - Step real.
SVolts - Step volts
SLOG - Step log
SIMPedance - Step impedance
For RLCG domain choose from:
For ADS file, choose from:
MDIF
ML2CTL - ML2CTL model
For HSPice file, choose from:
WELement - W-Element
WTABular - W-Element Tabluar
Examples
:EXPort:FORMat MA
Query Syntax
:EXPort:FORMat?
Return Type
String
Default
SReal - for time domain
RI - for frequency domain
MDIF - for RLCG domain
