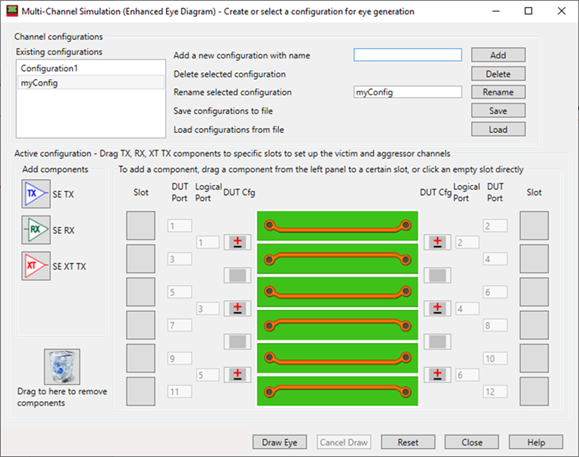

(Write-only) This command sets the single-ended port mapping of the DUT configuration in multi-channel eye simulation.
Parameters
<string>
Single-ended port mapping of the DUT configuration
Examples
:EYE:ENHanced:CONFigure:PORTs:MAPPing:SENDed '1|1|<<<<<<|2|3|>>>>>>|3|2|<<<<<<|4|4|>>>>>>|'
Return Type
Not Applicable
Default
Not Applicable
