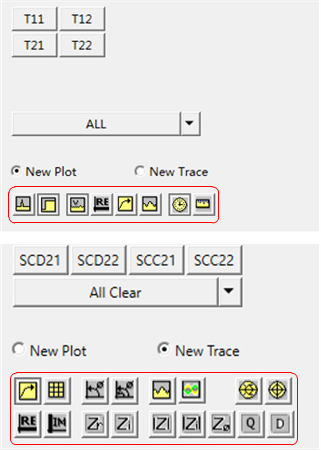

(Read-Write) This command sets and gets the plot data display format.
Parameters
<fnum>
Index of the selected file.
<vnum>
Index of the selected view.
<pnum>
Index of the selected plot.
<char>
Display format.
For time domain, choose from:
IVN - impulse volts ns
IRN - impulse real ns
ILN - impulse log mag ns
IVC - impulse volts cm
IRC - impulse real cm
ILC - impulse log mag cm
SVN - step volts ns
SRN - step real ns
SLN - step log mag ns
SIN - step impedance ns
SVC - step volts cm
SRC - step real cm
SLC - step log mag cm
SIC - step impedance cm
For frequency domain, choose from:
LOGM - log mag
LINM - linear mag
PHASe - phase
PUNWrapped - phase unwrapped
GDELay - group delay
SMITh - smith chart
POLa - polar chart
REAL - real
IMAGinary - imaginary
SWR - SWR
ZReal - impedance real
ZImaginary - impedance imaginary
ZMAGnitude - impedance magnitude
ZIMMagnitude - impedance imaginary magnitude
ZANGle - impedance angle
QFACtor - quality factor
DFACtor - dissipation factor
Examples
:FILE1:VIEW1:PLOT1:FORMat LOGM
Query Syntax
:FILE1:VIEW1:PLOT1:FORMat?
Return Type
Character
Default
SVN - for time domain
LOGM - for frequency domain
