Display Pattern on the Hop panel provides a plot of the frequency hop pattern data. The plot shows frequency versus repetition of pulses. The plot is based on the current Hop Pattern properties. You may zoom in on the hop pattern plot by clicking and dragging across the area of interest.

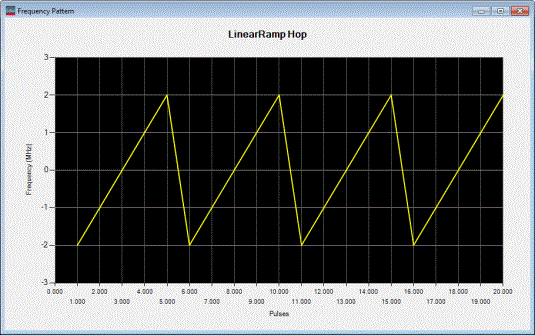

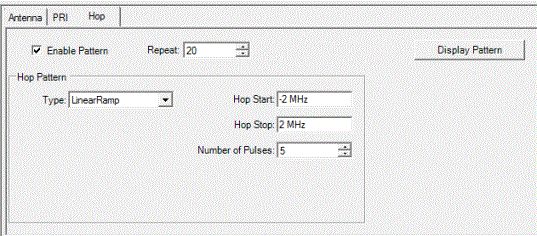

The figures below show a Linear Ramp hop pattern and the corresponding Hop pattern tab settings.
