Block Diagrams (NA520xA)

This topic applies to NA520xA PNA-X Pro models only.

2-Port, Option 231

2-Port, Option 239

2-Port, Option 241

2-Port, Option 249

4-Port, Option 431

4-Port, Option 439

4-Port, Option 441

4-Port, Option 449

4-Port, Option 451

4-Port, Option 471

4-Port, Option 479

4-Port, Option 481

4-Port, Option 489

Switch Paths

2-Port, Option 231

RF loops, source attenuators, switches.

2-Port, Option 239

RF loops, source attenuators, switches, noise figure.

2-Port, Option 241

RF loops, source attenuators, switches, bias tees.

2-Port, Option 249

RF loops, source attenuators, switches, bias tees, noise figure.

4-Port, Option 431

RF loops, source attenuators, switches.

4-Port, Option 439

RF loops, source attenuators, switches, noise figure.

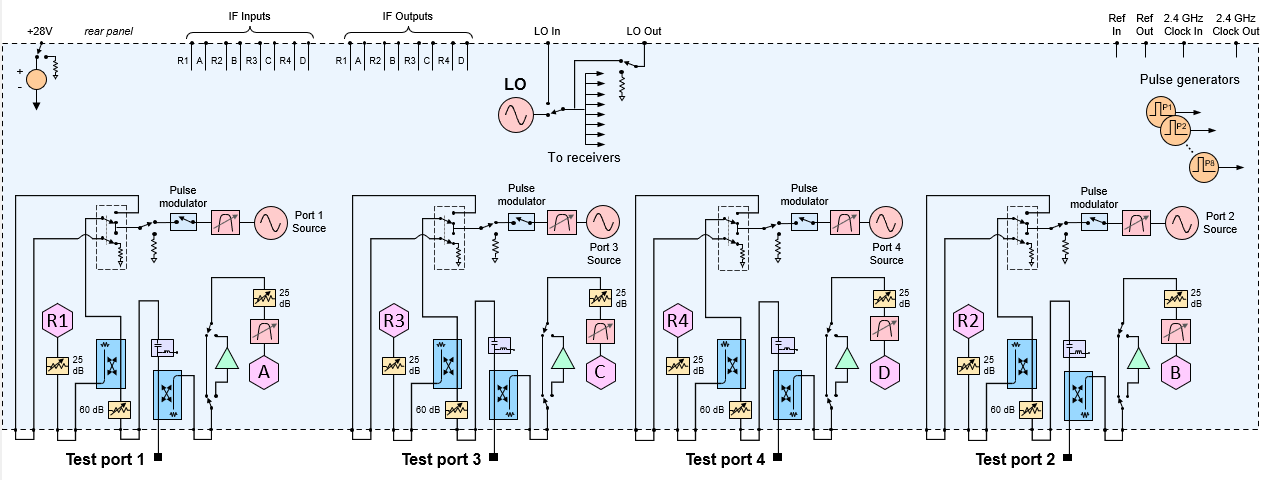

4-Port, Option 441

RF loops, source attenuators, switches, bias tees.

4-Port, Option 449

RF loops, source attenuators, switches, bias tees, noise figure.

4-Port, Option 451

RF loops, switches, combiners.

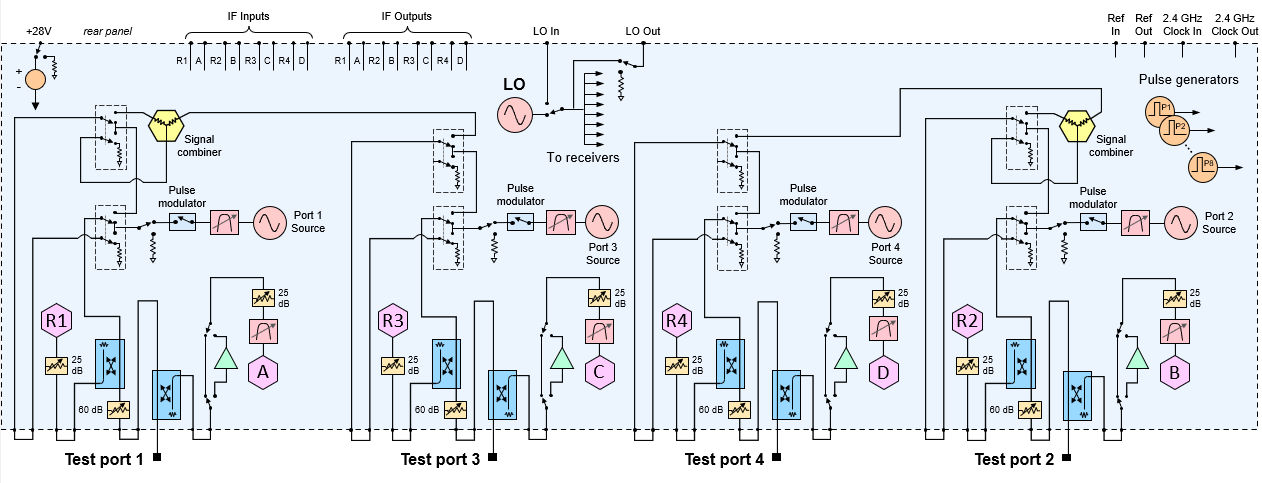

4-Port, Option 471

RF loops, source attenuators, switches, combiners.

4-Port, Option 479

RF loops, source attenuators, switches, combiners, noise figure.

4-Port, Option 481

RF loops, source attenuators, switches, combiners, bias tees.

4-Port, Option 489

RF loops, source attenuators, switches, combiners, bias tees, noise figure.

Switch Paths

Thru, jumper, combiner.
