Connection of Test Fixture

Connect the test fixture as follows.

1. Turn the 7-mm connector nut of the test head counterclockwise until the connector sleeve is fully retracted.

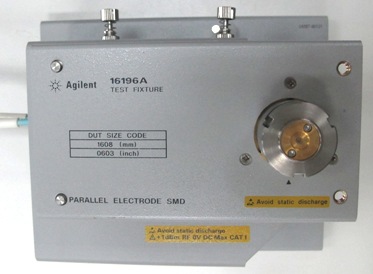

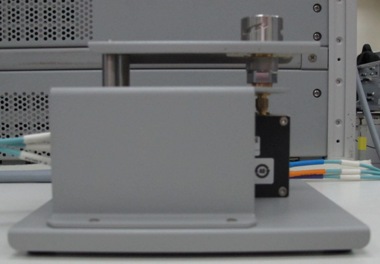

2. Set the test fixture on top of the test head with the 7-mm connectors aligned. Ensure that the two holes on the test fixture is mounted on the two mount posts of the test fixture stand.

3. Turn the 7-mm connector nut of the test head counterclockwise to secure the connection.
