Saving the Setup Table in CSV Format

The following procedure can be used to save the setting values and measurement result list components of the measurement point setup table, calibration kit setup table and compensation kit setup table of the E4982A on a storage device in the CSV format (.csv).

1. Set the E4982A to show the setup table that you want to save.

2. Press Data Export > Export All Setup Tables.... (or Press Stim Table > All Table > Export All Setup Tables....)

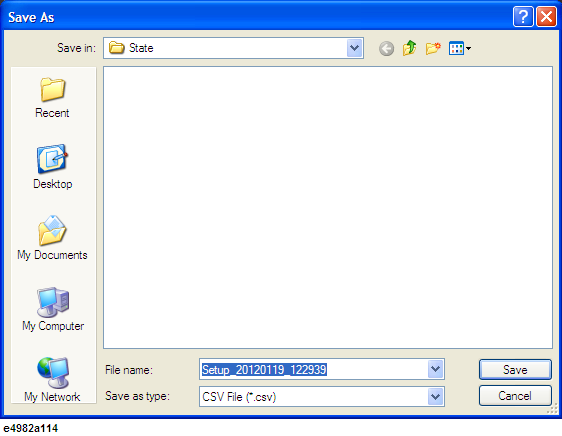

3. The setup table Save As dialog box is displayed.

4. Enter the filename in the File name box.

• You are not required to add the extension following the filename (the “.csv” filename extension is automatically added).

5. Click on the Save button to save the setup table.

Example of Saved Setup Table Data (CSV format)

The saved CSV-format data is a text file. This file can be opened using a text editor such as Notepad application. Figure below shows an example of the setup table data in CSV-format.

The CSV-format data can be displayed with a formatted style in a spreadsheet application. Figure below shows the CSV data displayed in Microsoft Excel.

Recalling the setting

You can recall the setting.

1. Press Stim Table > All Table > Import All Setup Tables....

2. Open dialog box is displayed.

3. Select the desired file.
