Timing Chart

The timing chart below shows the timing and duration of each handler signal. During the interval where /DATA is unknown, no output signal is available because the E4982A is processing the result of analog measurement. For the meanings of T1 through T7 in this chart, see the Operation Manual.

• Design a handler-based auto-sorting system so that the measurement cycle must be synchronized with the operation status of the E4982A using the status report system or the timing signals (/READY_FOR_TRIG, /INDEX, or /EOM). Don’t synchronize by inserting a wait time in the control program for a handler-based auto-sorting system.

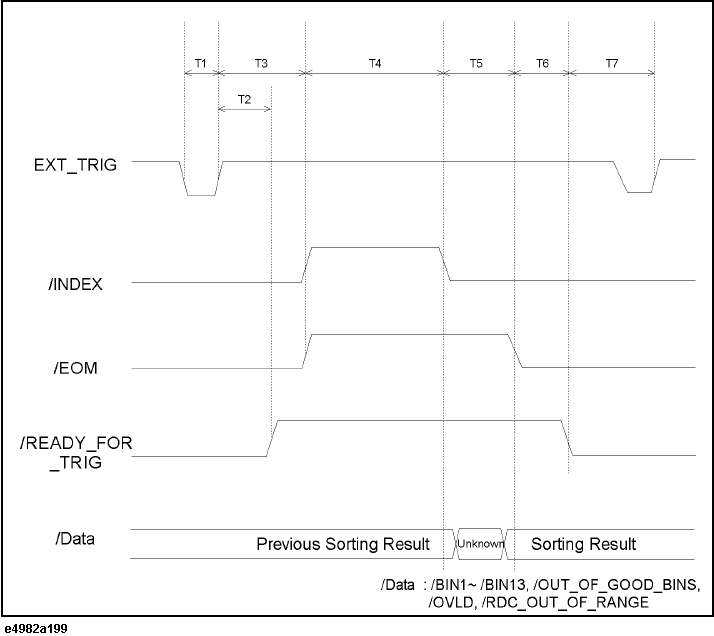

Handler interface timing chart
