This sample program demonstrates the use of the bin sorting function.

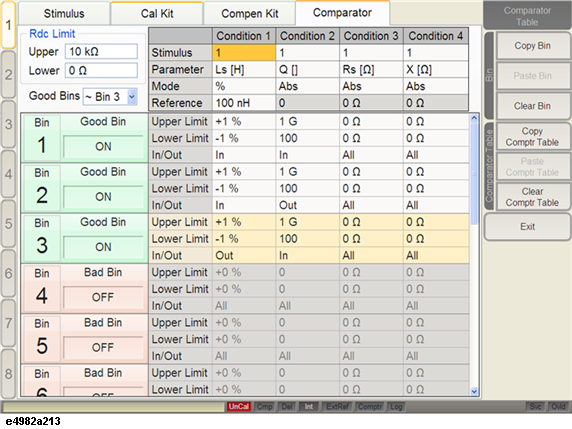

The sample program first configures the bin sorting conditions as shown in the figure below and then performs 50 measurement cycles; each time the instrument completes one measurement cycle, the program retrieves and displays the bin sorting results. Finally, after the instrument has completed the last measurement cycle, the program retrieves and displays the number of DUTs sorted into each bin.
This sample program uses the main module as well as a class module. Insert a class module in the main module with the name Class1.
In the class module, use the program codes from Class Module.
In the main module, use the program codes from Main Module.
Private pNominal As Double
Private pLowLim As Double
Private pUpLim As Double
Private pLType As String
Public Property Get Nominal() As Double
Nominal = pNominal
End Property
Public Property Let Nominal(value As Double)
pNominal = value
End Property
Public Property Get LowLim() As Double
LowLim = pLowLim
End Property
Public Property Let LowLim(value As Double)
pLowLim = value
End Property
Public Property Get UpLim() As Double
UpLim = pUpLim
End Property
Public Property Let UpLim(value As Double)
pUpLim = value
End Property
Public Property Get LType() As String
LType = pLType
End Property
Public Property Let LType(value As String)
pLType = value
End Property
Sub BinSorting()
'Demonstrates the use of the bin sorting function.
'The program first configures the bin sorting condition and then performs
'50 measurement cycles; each time the instrument completes one measurement
'cycle, the program retrieves and displays the bin sorting results. Finally,
'after the instrument has completed the last measurement cycle, the program
'retrieves and displays the number of DUT's sorted into each bin.
Dim Params As Class1
Dim Stat As String
Dim Ls As String
Dim Q As String
Dim Bin_res As Integer
Dim binResult() As Double
Dim LimMode As String
Dim Max_cond As Integer
Dim Max_bin As Integer
Dim Nominal As Double
Dim Ogbin As Integer
Dim Result() As Double
Dim instStat As Double
Dim instResult As Double
Dim Bin() As String
Dim FirstRow As Integer
Dim i As Integer
Dim J As Integer
Dim K As Integer
Dim J_I As Integer
Dim Cond_reg As Double
Dim ioMgr As VisaComLib.ResourceManager
Dim age4982x As New VisaComLib.FormattedIO488
'Sets the GPIB address
Set ioMgr = New VisaComLib.ResourceManager
Set age4982x = New VisaComLib.FormattedIO488
Set age4982x.IO = ioMgr.Open("GPIB0::17::INSTR")
age4982x.IO.Timeout = 30000
'Store the highest sorting condition number into Max_cond
'variable and the highest bin number into the Max_bin variable
Max_cond = 2
Max_bin = 3
'Store the highest good bin number, which serves as the boundary
'between the good and bad bins, into the Ogbin variable
Ogbin = 2
'Store the settings for sorting conditions 1 and 2 that apply to
'all bins into the corresponding arrays: PointNo contains the
'measurement points; Para contains the selected measurement
'parameters; LimMode containts the modes of boundary definition;
'Nominal contains the reference values
Nominal = 0.0000000558
Set Params11 = New Class1
Params11.LowLim = -1#
Params11.UpLim = 1#
Params11.LType = "IN"
Set Params12 = New Class1
Params12.LowLim = 100#
Params12.UpLim = 1000000000#
Params12.LType = "IN"
Set Params21 = New Class1
Params21.LowLim = -1#
Params21.UpLim = 1#
Params21.LType = "IN"
Set Params22 = New Class1
Params22.LowLim = 100#
Params22.UpLim = 1000000000#
Params22.LType = "OUT"
Set Params31 = New Class1
Params31.LowLim = -1#
Params31.UpLim = 1#
Params31.LType = "OUT"
Set Params32 = New Class1
Params32.LowLim = 100#
Params32.UpLim = 1000000000#
Params32.LType = "IN"
' Measurement Condition Setting
'Configure the instrument to perform single-point measurement at the
'specific measurement point (point 1) defined in active table
age4982x.WriteString ":SOUR:LIST:TABL 1"
age4982x.WriteString ":SOUR:LIST:STAT OFF"
age4982x.WriteString ":SOUR:LIST:POIN 1"
age4982x.WriteString ":CALC:PAR1:FORM LS"
age4982x.WriteString ":CALC:PAR2:FORM Q"
age4982x.WriteString ":DISP:TEXT1:CALC1 ON"
age4982x.WriteString ":DISP:TEXT1:CALC2 ON"
age4982x.WriteString ":DISP:TEXT1:CALC3 OFF"
age4982x.WriteString ":DISP:TEXT1:CALC4 OFF"
age4982x.WriteString ":DISP:TEXT1:CALC11 OFF"
age4982x.WriteString ":DISP:TEXT1:CALC12 OFF"
age4982x.WriteString ":SOUR:LIST:RDC OFF" 'Turns off the Rdc measurement function
' Bin Sort Setup Table Setting
'Reset the bin sorting setup table and turns ON the bin sorting function
age4982x.WriteString ":CALC:COMP:CLE"
age4982x.WriteString ":CALC:COMP ON"
'Iterate the following steps for each of the sorting conditions 1 through
'Meas_cond
For i = 1 To Max_cond
'Sets the point number to 1, measurement parameter to Params, limit mode to Params.LimMod
Select Case i
Case 1
age4982x.WriteString ":CALC:COMP:COND1:SNUM 1"
age4982x.WriteString ":CALC:COMP:COND1:PAR LS"
age4982x.WriteString ":CALC:COMP:COND1:MODE PCNT"
LimMode = "LS"
Case Else
age4982x.WriteString ":CALC:COMP:COND2:SNUM 1"
age4982x.WriteString ":CALC:COMP:COND2:PAR Q"
age4982x.WriteString ":CALC:COMP:COND2:MODE ABS"
LimMode = "Q"
End Select
'Sets the reference value to Nominal. Note that these statements are skipped if the
'boundary is defined in absolute mode
If LimMode = "LS" Then
age4982x.WriteString ":CALC:COMP:COND" & i & ":NOM " & Nominal
End If
'Enables the bin and sets the BIN range mode to Params.LType
'Sets the lower and upper limits of the bin range to Params.LowLim and Params.UpLim
'respectively. Note that these statements are skipped if the bin range is defined
'in the ALL mode
For J = 1 To Max_bin
J_I = J & i
age4982x.WriteString ":CALC:COMP:BIN" & J & " ON"
Select Case J_I
Case 11
age4982x.WriteString ":CALC:COMP:BIN" & J & ":COND" & i & ":LTYP " & Params11.LType
If Params11.LType <> "ALL" Then
age4982x.WriteString ":CALC:COMP:BIN" & J & ":COND" & i & ":LIM " & Params11.LowLim & "," & Params11.UpLim
End If
Case 12
age4982x.WriteString ":CALC:COMP:BIN" & J & ":COND" & i & ":LTYP " & Params12.LType
If Params12.LType <> "ALL" Then
age4982x.WriteString ":CALC:COMP:BIN" & J & ":COND" & i & ":LIM " & Params12.LowLim & "," & Params12.UpLim
End If
Case 21
age4982x.WriteString ":CALC:COMP:BIN" & J & ":COND" & i & ":LTYP " & Params21.LType
If Params21.LType <> "ALL" Then
age4982x.WriteString ":CALC:COMP:BIN" & J & ":COND" & i & ":LIM " & Params21.LowLim & "," & Params21.UpLim
End If
Case 22
age4982x.WriteString ":CALC:COMP:BIN" & J & ":COND" & i & ":LTYP " & Params22.LType
If Params22.LType <> "ALL" Then
age4982x.WriteString ":CALC:COMP:BIN" & J & ":COND" & i & ":LIM " & Params22.LowLim & "," & Params22.UpLim
End If
Case 31
age4982x.WriteString ":CALC:COMP:BIN" & J & ":COND" & i & ":LTYP " & Params31.LType
If Params31.LType <> "ALL" Then
age4982x.WriteString ":CALC:COMP:BIN" & J & ":COND" & i & ":LIM " & Params31.LowLim & "," & Params31.UpLim
End If
Case 32
age4982x.WriteString ":CALC:COMP:BIN" & J & ":COND" & i & ":LTYP " & Params32.LType
If Params32.LType <> "ALL" Then
age4982x.WriteString ":CALC:COMP:BIN" & J & ":COND" & i & ":LIM " & Params32.LowLim & "," & Params32.UpLim
End If
End Select
Next J
Next i
'Assign all bins with their numbers greater than Ogbin as good bins
'and turns on the bin count function
age4982x.WriteString ":CALC:COMP:OGB " & Ogbin
age4982x.WriteString ":CALC:COMP:COUN ON"
' Measurement
'Sets the data transfer format to ASCII
age4982x.WriteString ":FORM ASC"
'After measurement is stopped (the trigger system is stopped), the
'program sets the trigger source to GPIB/LAN trigger and turns on the
'continuous activation of the trigger system
age4982x.WriteString ":ABOR"
age4982x.WriteString ":TRIG:SOUR BUS"
age4982x.WriteString ":INIT:CONT ON"
'Clear the bin counter value
age4982x.WriteString ":CALC:COMP:COUN:CLE"
'Loops through the following steps 50 times
FirstRow = 15
Cells(FirstRow, 1) = "Status"
Cells(FirstRow, 2) = "Ls"
Cells(FirstRow, 3) = "Q"
Cells(FirstRow, 4) = "BIN"
For i = 1 To 50
'Triggers the instrument after the trigger system is put into trigger wait state
Do
age4982x.WriteString ":STAT:OPER:COND?"
Cond_reg = age4982x.ReadNumber
Loop Until Cond_reg <> 0
age4982x.WriteString "*TRG"
'Retrieves the measurement results
Result() = age4982x.ReadList(ASCIIType_R8, ",")
Stat = Result(0)
Ls = Result(1)
Q = Result(2)
age4982x.WriteString ":CALC:COMP:DATA:BIN?"
Bin_res = age4982x.ReadNumber
Cells(FirstRow + 1, 1) = Stat
Cells(FirstRow + 1, 2) = Ls
Cells(FirstRow + 1, 3) = Q
Cells(FirstRow + 1, 4) = Bin_res
FirstRow = FirstRow + 1
Next i
FirstRow = 15
Cells(FirstRow, 8) = "BIN"
Cells(FirstRow, 9) = "Results"
'Retrieves and displays the bin count
age4982x.WriteString ":CALC:COMP:DATA:BCOU?"
binResult() = age4982x.ReadList(ASCIIType_R8, ",")
Dim nums As Integer
For K = 0 To 13
If K <> 13 Then
Cells(FirstRow + 1, 8) = K + 1
Cells(FirstRow + 1, 9) = binResult(K)
Else
Cells(FirstRow + 2, 8) = "Out of good bins"
Cells(FirstRow + 2, 9) = binResult(K)
'MsgBox "Out of good bins: " & binResult(K), vbOKOnly
End If
FirstRow = FirstRow + 1
Next K
End Sub
