MaxEnvelopeGap(Chan)

Syntax

Value = MaxEnvelopeGap(Chan)

Description

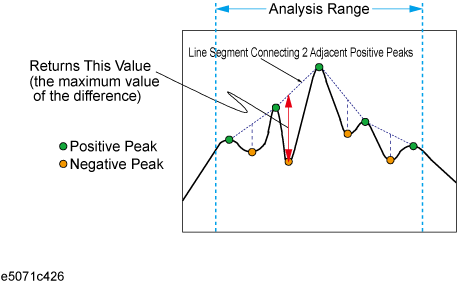

Returns the maximum value of the vertical distance between the line segments connecting 2 adjacent positive peaks and the negative peaks between them within the analysis range.

MaxEnvelopeGap

Variable

Parameter

Chan

Description

Specifies the channel number.

Data type

Integer type (Integer)

Range

1 to 9

Note

If the specified variable is out of the allowable setup range, an error occurs when executed.

Return value

Parameter

Value

Description

Returns the maximum value of the vertical distance between the line segments connecting 2 adjacent positive peaks and the negative peaks between them.

Data type

Double precision floating point type (Double)

Note

If no applicable point is detected, 0 is returned.

Example of use

Dim Value As Double

Value = MaxEnvelopeGap(1)

MsgBox "Max Envelope Gap =" & Value
