MaxRipplePoint(Chan,Stim)

Syntax

Value = MaxRipplePoint(Chan,Stim)

Description

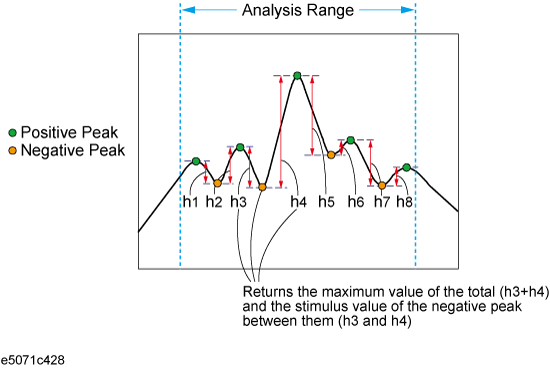

Returns the maximum value of the sum of the response differences between the negative peaks and its adjacent positive peaks and the stimulus value of the applicable negative peaks within the analysis range.

MaxRipplePoint

Variable

Parameter

Chan

Description

Specifies the channel number.

Data type

Integer type (Integer)

Range

1 to 9

Note

If the specified variable is out of the allowable setup range, an error occurs when executed.

Return value

Parameter

Value

Description

Returns the maximum value of the sum of the response differences between the negative peaks and its adjacent positive peaks.

Data type

Double precision floating point type (Double)

Note

If no applicable point is detected, 0 is returned.



Parameter

Stim

Description

Returns the stimulus value of the negative peak at which the sum of the response differences between the negative peak and its adjacent positive peaks is maximum.

Data type

Double precision floating point type (Double)

Note

If no applicable point is detected, 0 is returned.

Example of use

Dim Value As Double
Dim Stim As Double

Value = MaxRipplePoint(1, Stim)
MsgBox "Max Ripple Value =" & Value & " , Stimulus =" & Stim
