Starting and Exiting TDR Application

• Starting TDR Application

• Exiting TDR Application, GUI (Graphical User Interface)

Other topics about Overview

Ensure that TDR application is installed and E5071C-TDR option is enabled.

Starting TDR Application

• Click Analysis > TDR to turn on the TDR. The E5071C application restarts.

Exiting TDR Application, GUI (Graphical User Interface)

1. Turn on the Advanced Mode.

2. Click Analysis > TDR to turn off the TDR application. The E5071C application restarts.

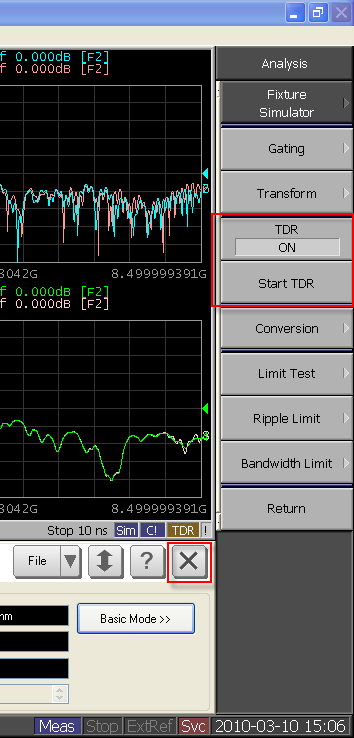

Click on the X button on E5071C-TDR application GUI to close it. However, the E5071C-TDR application (MODE) is not exited unless you turned off Analysis > TDR. You can restart the E5071C-TDR application GUI by clicking on the Analysis > Start TDR key.
