Data Processing

The internal data processing flowchart, channel data processing flowchart and trace data processing flowchart for the E5072A are shown in the following figures.

• Click on each box to learn about the corresponding process.

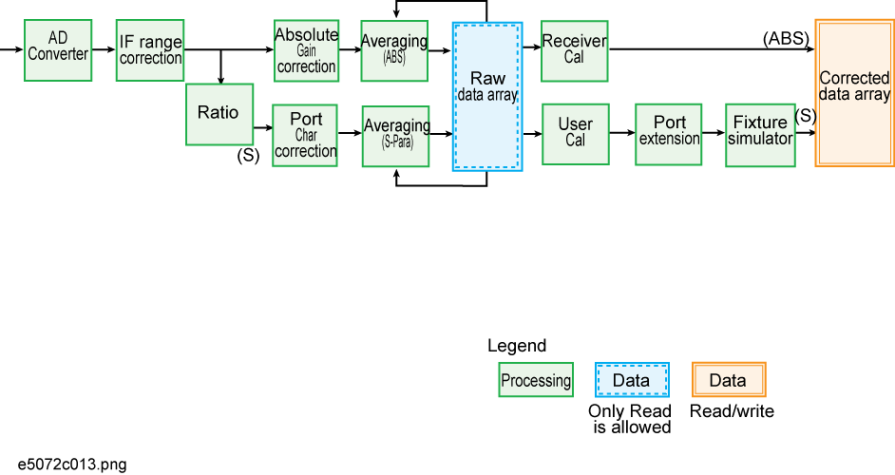

Channel Data Processing Flowchart

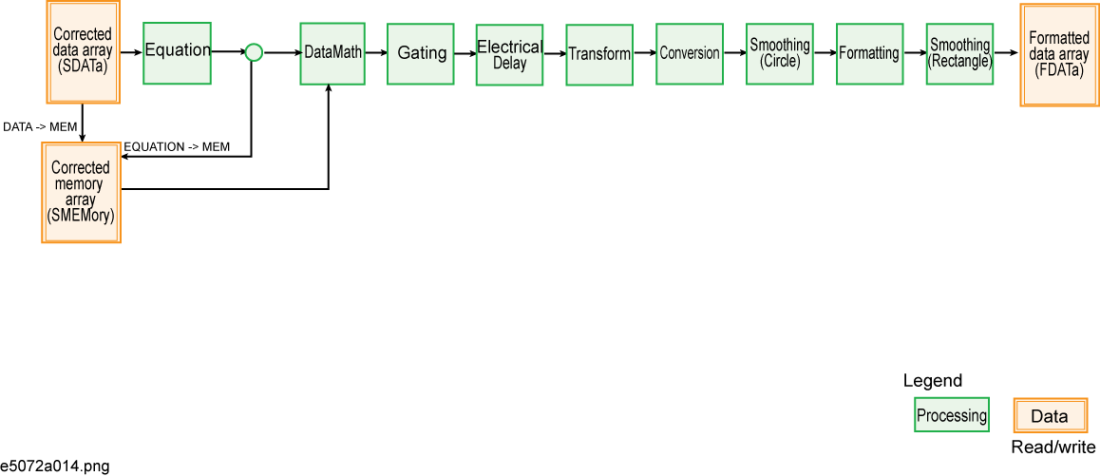

Trace Data Processing Flowchart
