Theory of Operation: M31/M33XX Digitizers

M31/M33XX digitizers are part of the new M3XXXA family of FPGA-programmable AWGs and digitizers. These high-performance digitizers with high channel density (up to 8 Ch in a single 3U PXIe slot) have an advanced data acquisition system (DAQ), includes easy-to-use programming libraries (section 3.1.1.1) and provides optional real-time sequencing and decision making capability (Hard Virtual Instrumentation or HVI: section 3.1.2.1) with precise timing and multi-module synchronization. Graphical FPGA programing (section 3.1.2.2) allows for FPGA customization without HDL programming expertise and performance penalty.

Digitizer Operation

The M31/M33xx Digitizers has a flexible and powerful input structure to acquire signals (Figure 1).

Figure 1: M31/M33XXA Digitizers input functional block diagram. All input channels have identical structure.

Figure 1 shows Keysight standards for the output labeling (channel enumeration starts with CH1), however function open (Section 2.4.2.1) provides a compatibility mode for legacy modules (channel enumeration starts with CH0).

Modules are opened by default with the enumeration mode of its front panel. However, it is possible to open them in compatibility mode, forcing enumeration to the selected option. This option might be needed when different modules coexist.

The compatibility options are shown in Table 0.

Output Signal Selection

		Programming Definitions
Option	Description	Name	Value
Legacy	Channel enumeration starts with CH0	COMPATIBILITY_LEGACY	0
Keysight	Channel enumeration starts with CH1	COMPATIBILITY_KEYSIGHT	1

Table 0: Compatibility, Section 2.4.2.1)

Input Settings

The M31/M33XXA Digitizers provides a block that allows the user to configure all the input settings such as input impedance, full scale, coupling, prescaler, etc.

Figure 2: Input settings in the M31/M33XXA Digitizers functional block diagram

Full Scale, Impedance and Coupling

Depending on the product specifications the user can configure the input full scale value, the input impedance (Table 1) and the input coupling (Table 2). The full scale parameter adjusts automatically the input gain to maximize the input dynamic range.

Product-dependent Settings: This Section describes all the possible input settings, but in reality they are product-dependent. Please check the corresponding product datasheet to see if they are applicable.

Input Impedance

		Programming Definitions
Option	Description	Name	Value
High Impedance	Input impedance is high (value is product dependent, check the corresponding datasheet)	AIN_IMPEDANCE_HZ	0
50Ω	Input impedance is 50Ω	AIN_IMPEDANCE_50	1

Table 1: Options for the input impedance setting (parameter impedance in function channelInputConfig.

Input Coupling

		Programming Definitions
Option	Description	Name	Value
DC	DC coupling	AIN_COUPLING_DC	0
AC	AC coupling	AIN_COUPLING_AC	1

Table 2: Options for the input coupling setting (parameter coupling in function channelInputConfig.

Programming Information

Function Name	Comments	Details
channelInputConfigIt	configures the input full scale, impedance and coupling settings	Section 2.3.4.1 on page 28

Table 3: Programming functions related to the input full scale, impedance and coupling settings

Prescaler

The prescaler is used to reduce the effective input sampling rate, capturing 1 out of n samples and discarding the rest. The resulting sampling rate is as follows:

where:

is final effective sampling frequency
is the Clock System
is an integer value (4 bits)

Advanced: Prescaler vs. Downsampling/Decimation: The prescaler cannot be considered as a full decimation or downsampling block, as it does not contain any filter and therefore it generates aliasing. For applications were full downsampling is required, the user must choose an IF Keysight Digitizer or Transceiver, which provide DDC (Digital Down Conversion).

Programming Information

Function Name	Comments	Details
channelPrescalerConfig	It configures the input prescaler	channelPrescalerConfig

Table 4: Programming functions related to the input prescaler

Analog Trigger

The analog trigger block processes the input data and generates a digital trigger that can be used by any Data Acquisition Block (Data Acquisition (DAQs)).

Figure 3: Analog trigger processor in the M31/M33XXA Digitizers functional block diagram

The user can select the threshold and the trigger mode. The available trigger modes are shown in Table 5.

Analog Trigger Mode

Programming Definitions

Option	Description	Name	Value
Rising Edge	Trigger is generated when the input signal is rising and crosses the threshold	AIN_RISING_EDGE	1
Falling Edge	Trigger is generated when the input signal is falling and crosses the threshold	AIN_FALLING_EDGE	2
Both Edges	Trigger is generated when the input signal crosses the threshold, no matter if it is rising or falling	AIN_BOTH_EDGES	3

Table 5: Options for the analog trigger (parameter analogTriggerMode in function channelTriggerConfig

Programming Information

Function Name	Comments	Details
channelTriggerConfig	It configures the analog trigger for each channel	channelTriggerConfig

Table 6: Programming functions related to the analog triggers

Data Acquisition (DAQs)

The Data Acquisition (DAQ) is a powerful and flexible block which acquires incoming words and sends them to the user PC using dedicated DMA channels (Figure 5).

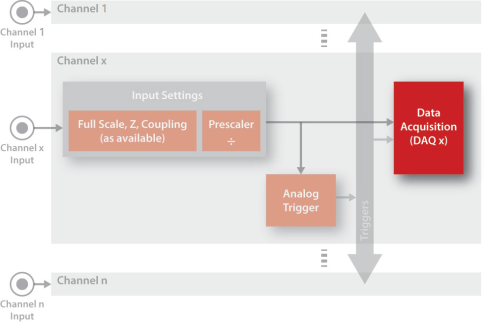

Figure 4: DAQ units in the M31/M33XXA Digitizers

Operation

The words acquisition requires two easy steps:

Configuration: A call to the function DAQconfig allows the user to configure, among others, the trigger method, the number of DAQ cycles to perform (number of triggers), the number of acquired words per cycle (DAQpointsPerCycle), and the number of words that must be acquired before interrupting the PC (DAQpoints). Figure 6 on the following page illustrates the flexibility of the DAQ block operation.
Data read:
1. Using DAQread : a blocking/non-blocking function that returns the array of acquired words (DAQ- data).
2. Using a callback function: a user function that is automatically called when the configured amount of data (set with DAQpoints) is available.

Figure 5: M31/M33XXA Digitizers words acquisition operation

Tip: Pausing and Resuming the DAQ: The function DAQstop pauses the DAQ operation (triggers are discarded). The acquisition can be resumed calling DAQstart.
A DAQstop is performed automatically when the DAQ block reaches the specified number of acquisition cycles.

Figure 6: Examples of the DAQ operation (not all trigger methods are available in all modules)

Advanced: Onboard memory and DAQpoints selection: The acquired words are first stored in a DAQ buffer located in the module onboard RAM and then sent to the PC RAM via the ultra-fast PXI Express bus (Figure 5 on the previous page) using dedicated DMA channels. This DAQ buffer, and therefore the minimum amount of onboard RAM needed for an application, is directly the size of the data array the user wants to receive in each DAQread or callback function call. This data array, called DAQdata, contains DAQpoints words. Therefore, its size is DAQpoints x 2 bytes/word (in the case of the M31/M33XXA Digitizers). The size of this DAQ buffer must be chosen according to two criteria:

High speed transients: the DAQ onboard buffer can store bursts of words at higher rates than the PXIe and the computer can handle. Larger buffers allow handling longer high speed bursts.
PC load: The DAQ buffer must be chosen to allow the PC enough time to process each DAQ buffer (DAQdata) and to handle interrupts and process-context switching tasks. For example, if a computer requires 500 ms to process DAQdata, the buffer size must be such that it can store more than 500 ms of input words without interrupting the computer. The DAQ block facilitates the task of adjusting the PC processing rate with the introduction of the DAQ cycles (Figure 6).

The amount of required PC RAM is double the amount of required onboard RAM.

Prescaler: The DAQ block has an input prescaler which can be configured to discard words, reducing the effective acquisition data rate (function DAQconfig).

DAQ counter: The DAQ block has a dedicated counter to store the number of acquired words since the last call to DAQconfig or DAQflush. This counter can be read with DAQcounterRead.

DAQ Trigger

As previously explained, the user can configure the trigger for the acquisition. The available trigger modes for the DAQ are show in Table 7).

DAQ Trigger Mode

		Programming Definitions
Option	Description	Name	Value
Auto (Immediate)	The acquisition starts automatically after a call to function DAQstart	AUTOTRIG	0
Software / HVI	Software trigger. The acquisition is triggered by the function DAQtrigger, DAQtrigger provided that the DAQ is running. DAQtrigger can be executed from the user application (VI) or from an HVI (see HVI details, HVI Programming Overview)	SWHVITRIG1	1
Hardware Digital Trigger	Hardware trigger. The DAQ waits for an external digital trigger	HWDIGTRIG	2
Hardware Analog Trigger	Hardware trigger. The DAQ waits for an external analog trigger (only products with analog inputs)	HWANATRIG	3

Table 7: DAQ trigger modes (parameter triggerMode in function DAQconfig, Section 2.4.5.4 )

As show in Table 7, the user has the following options for hardware triggers:

Hardware Digital Trigger: If the DAQ is set to use a digital hardware trigger, the user must configure it using the function DAQdigitalTriggerConfig. The available digital hardware trigger options are shown in Table 8 and Table 9. If external I/O trigger is selected in DAQdigitalTriggerConfig, the user must configure additional settings of this particular I/O line, such as input/output direction, sampling/synchronization options, etc. (I/O Triggers).

Hardware Analog Trigger: (Only products with analog inputs) If the DAQ is set to use an analog hardware trigger, the user must configure it using the function DAQanalogTriggerConfig . The Analog Trigger Block of the corresponding analog input channel must also be configured.

DAQ Hardware Digital Trigger Source

Option	Description	Name	Value
External I/O Trigger	The DAQ trigger is a TRG connector/line of the product (I/O Triggers). PXI form factor only: this trigger can be synchronized to CLK10, see Table	TRIG_EXTERNAL	0
PXI Trigger	PXI form factor only. The DAQ trigger is a PXI trigger line and it is synchronized to CLK10	TRIG_PXI	1

Table 8: External trigger source for the DAQ (parameter externalSource in function DAQdigitalTriggerConfig).

DAQ Hardware Digital Trigger Behaviour

		Programming Definitions
Option	Description	Name	Value
Active High	Trigger is active when it is at level high	TRIG_HIGH	1
Active Low	Trigger is active when it is at level Low	TRIG_LOW	2
Rising Edge	Trigger is active on the rising edge	TRIG_RISE	3
Falling Edge	Trigger is active on the falling edge	TRIG_FALL	4

Table 9: Hardware digital trigger behaviour for the DAQ (parameter triggerBehaviour in function DAQdigitalTriggerConfig)

Programming Functions Summary

Programming Information

Function Name	Comments	Details
channelInputConfig	This function sets the input full scale, impedance and coupling	Section 2.4.5.1
channelPrescalerConfig	This function configures the input	Section 2.4.5.2
channelTriggerConfig	This function configures the analog trigger block for each channel	Section 2.4.5.3
DAQconfig	This function configures the acquisition of words Data Acquisition (DAQs)	Section 2.4.5.4
DAQdigitalTriggerConfig	This function configures the digital hardware triggers for the selected DAQ Trigger	Section 2.4.5.5
DAQanalogTriggerConfig	This function configures the analog hardware trigger for the selected DAQ Trigger	Section 2.4.5.6
DAQread	This function reads the words acquired with the selected DAQ Data Acquisition. It can be used only after calling the function DAQconfig and when a callback function is not configured	Section 2.4.5.7
DAQstart	This function starts acquisition on the selected DAQ	Section 2.4.5.8
DAQstartMultiple	This function starts acquisition on multiple DAQs	Section 2.4.5.9
DAQstop	This function stops the words acquisition Data Acquisition of a DAQ	Section 2.4.5.10
DAQstopMultiple	This function stops the words acquisition Data Acquisition of multiple DAQs	Section 2.4.5.11
DAQpause	This function pauses the words acquisition Data Acquisition of a DAQs. Acquisition can be resumed using DAQresume.	Section 2.4.5.12
DAQpauseMultiple	This function pauses the words acquisition Data Acquisition of multiple DAQs. Acquisition can be resumed using DAQresumeMultiple.	Section 2.4.5.13
DAQresume	This function resumes acquisition on the selected DAQ Data Acquisition	Section 2.4.5.14
DAQresumeMultiple	This function resumes acquisition on multiple DAQs Data Acquisition	Section 2.4.5.15
DAQflush	This function flushes the acquisition buffers and resets the acquisition counter included in Data Acquisition block of a DAQ	Section 2.4.5.16
DAQflushMultiple	This function flushes the acquisition buffers and resets the acquisition counter included in multiple Data Acquisition blocks of the DAQs	Section 2.4.5.17
DAQtrigger	This function triggers the acquisition of words in the selected DAQ	Section 2.4.5.18
DAQtriggerMultiple	This function triggers the acquisition of words in multiple DAQs	Section 2.4.5.19
DAQcounterRead	This function reads the number of words acquired by the selected DAQ	Section 2.4.5.20
triggerIOconfig	This function configures the trigger connector/line direction and synchronization/sampling method	Section 2.4.5.21
triggerIOwrite	This function sets the trigger output. The trigger must be configured as output using function triggerIOconfig and I/O Triggers	Section 2.4.5.22
triggerIOread	This function reads the trigger input	Section 2.4.5.23
clockSetFrequency	This function sets the module clock frequency	Section 2.4.5.24
clockGetFrequency	This function returns the real hardware clock frequency	Section 2.4.5.25
clockGetSyncFrequency	This function returns the frequency of Clock System	Section 2.4.5.26
clockResetPhase	This function sets the module in a sync state, waiting for the first trigger to reset the phase of the internal clocks CLKsync and CLKsys	Section 2.4.5.27
DAQbufferPoolConfig	This function configures buffer pool that will be filled with the data of the channel to be transferred to PC.	Section 2.4.5.28
DAQbufferAdd	Adds an additional buffer to the channel’s previously configured pool.	Section 2.4.5.29
DAQbufferGet	Gets a filled buffer from the channel buffer pool. User has to call DAQbufferAdd with this buffer to tell the pool that the buffer can be used again.	Section 2.4.5.30
DAQbufferPoolRelease	Releases the channel buffer pool and its resources. After this call, user has to call DAQbufferRemove consecutively to get all buffers back and release them.	Section 2.4.5.31
DAQbufferRemove	Ask for a buffer to be removed from the channel buffer pool. If NULL pointer is returned, no more buffers remains in buffer pool. Returned buffer is a previously added buffer from user and user has to release/delete it.	Section 2.4.5.32
FFT	Calculates the FFT of data captured by DAQread for the selected channel	Section 2.4.5.33

Table 10: Programming functions related to the digitizers
