Satellite power reference is the absolute power of one satellite signal with 0dB relative power. When real-time application is turned on, the amplitude on the front panel will be set to satellite power reference. When satellite power reference is changed, the amplitude on the front panel will also be updated.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:POWer:REFerence <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:POWer:REFerence?
SCPI Example	RADio:GNSS:WAVeform:CCAR:POW:REF -120 RADio:GNSS:WAVeform:CCAR:POW:REF?
Preset	-130
State Saved	Yes
Range	-144 to 0
Initial S/W Revision	A.16.00

External Attenuation

Enter the attenuation value of the external attenuator if connected to instrument's RF port. Then the external attenuation will be compensated, which means the amplitude of the instrument output will be set to the sum of satellite power reference and external attenuation.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:ATTenuation <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:ATTenuation?
SCPI Example	RAD:GNSS:WAV:CCAR:ATT -10 RAD:GNSS:WAV:CCAR:ATT?
Preset	0
State Saved	Yes
Range	0 to 100
Initial S/W Revision	A.16.00

GPS Settings

GPS L1 C/A

Sets whether or not the GPS L1 C/A signal is to be played.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:L1CA ON\|OFF\|1\|0 [:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:L1CA?
SCPI Example	RADio:GNSS:WAVeform:CCAR:GPS:L1CA OFF RADio:GNSS:WAVeform:CCAR:GPS:L1CA?
Preset	ON
State Saved	Yes
Range	OFF\|ON
Initial S/W Revision	A.16.00

GPS L5 I

Sets whether or not the GPS L5 I signal is to be played.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:L5I ON\|OFF\|1\|0 [:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:L5I?
SCPI Example	RADio:GNSS:WAVeform:CCAR:GPS:L5I OFF RADio:GNSS:WAVeform:CCAR:GPS:L5I?
Preset	ON
State Saved	Yes
Range	OFF\|ON
Initial S/W Revision	A.16.00

GPS L5 Q

Sets whether or not the GPS L5 Q signal is to be played.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:L5Q ON\|OFF\|1\|0 [:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:L5Q?
SCPI Example	RADio:GNSS:WAVeform:CCAR:GPS:L5Q OFF RADio:GNSS:WAVeform:CCAR:GPS:L5Q?
Preset	ON
State Saved	Yes
Range	OFF\|ON
Initial S/W Revision	A.16.00

L1 C/A Power Boosting

Sets the GPS L1 C/A power boosting compared to reference power. This is visible only when GPS L1 C/A is on.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:L1PBoosting <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:L1PBoosting?
SCPI Example	RADio:GNSS:WAVeform:CCAR:GPS:L1PB -3 RADio:GNSS:WAVeform:CCAR:GPS: L1PB?
Preset	-1.5
State Saved	Yes
Range	-40 to 0
Initial S/W Revision	A.16.00

GPS L5 Power Boosting

Sets the GPS L5 power boosting compared to the GPS L1 power. This is visible only when GPS L5 I or GPS L5 Q is set to On.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:L5PBoosting <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:L5PBoosting?
SCPI Example	RADio:GNSS:WAVeform:CCAR:GPS:L5PB -3 RADio:GNSS:WAVeform:CCAR:GPS:L5PB?
Preset	0
State Saved	Yes
Range	-40 to 0
Initial S/W Revision	A.16.00

Galileo Settings

E1 OS

Sets whether the Galileo E1 Open Service signal is to be played.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GALileo:E1 ON\|OFF\|1\|0 [:SOURce]:RADio:GNSS:WAVeform:CCARrier:GALileo:E1?
SCPI Example	RADio:GNSS:WAVeform:CCAR:GALileo:E1 OFF RADio:GNSS:WAVeform:CCAR:GALileo:E1?
Preset	ON
State Saved	Yes
Range	OFF\|ON
Initial S/W Revision	A.16.00

E5 (E5a + E5b)

Sets whether the Galileo E5 (including E5a and E5b) signal is to be played.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GALileo:E5 ON\|OFF\|1\|0 [:SOURce]:RADio:GNSS:WAVeform:CCARrier:GALileo:E5?
SCPI Example	RADio:GNSS:WAVeform:CCAR:GALileo:E5 OFF RADio:GNSS:WAVeform:CCAR:GALileo:E5?
Preset	ON
State Saved	Yes
Range	OFF\|ON
Initial S/W Revision	A.16.00

E1 Power Boosting

Sets the Galileo E1 power boosting compared to reference power. This is only visible when E1 OS is On.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GALileo:E1PBoosting <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:GALileo:E1PBoosting?
SCPI Example	RADio:GNSS:WAVeform:CCAR:GAL:E1PB -3 RADio:GNSS:WAVeform:CCAR:GAL:E1PB?
Preset	-2
State Saved	Yes
Range	-40 to 0
Initial S/W Revision	A.16.00

E5 Power Boosting

Sets the Galileo E5 power boosting compared to reference power. This is only visible when E1 (E5a + E5b) is on.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GALileo:E5PBoosting <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:GALileo:E5PBoosting?
SCPI Example	RADio:GNSS:WAVeform:CCAR:GAL:E5PB -3 RADio:GNSS:WAVeform:CCAR:GAL:E5PB?
Preset	0
State Saved	Yes
Range	-40 to 0
Initial S/W Revision	A.16.00

Beidou Settings

B1I

Sets whether the BeiDou B1I signal is to be played.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:B1I 0\|1\|OFF\|ON [:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:B1I ON
SCPI Example	RADio:GNSS:WAVeform:CCAR:BEID:B1I OFF RADio:GNSS:WAVeform:CCAR:BEID:B1I?
Preset	ON
State Saved	Yes
Range	OFF\|ON
Initial S/W Revision	A.18.00

B1C

Sets whether the BeiDou B1C signal is to be played.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:B1C 0\|1\|OFF\|ON [:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:B1C ON
SCPI Example	RADio:GNSS:WAVeform:CCAR:BEID:B1C OFF RADio:GNSS:WAVeform:CCAR:BEID:B1C?
Preset	ON
State Saved	Yes
Range	OFF\|ON
Initial S/W Revision	A.18.00

B2a

Sets whether the BeiDou B2a signal is to be played.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:B2A 0\|1\|OFF\|ON [:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:B2A ON
SCPI Example	RADio:GNSS:WAVeform:CCAR:BEID:B2A OFF RADio:GNSS:WAVeform:CCAR:BEID:B2A?
Preset	ON
State Saved	Yes
Range	OFF\|ON
Initial S/W Revision	A.18.00

B1I Power Boosting

Sets the BeiDou B1I power boosting compared to reference power. This setting is visible only when B1I is set to ON.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:B1I:PBOosting <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:B1I:PBOosting?
SCPI Example	RADio:GNSS:WAVeform:CCAR:BEID:B1I:PBO -3 RADio:GNSS:WAVeform:CCAR: BEID:B1I:PBO?
Preset	-4
State Saved	Yes
Range	-40 to 0
Initial S/W Revision	A.18.00

B1C Power Boosting

Sets the BeiDou B1C power boosting compared to reference power. This setting is visible only when B1C is set to ON.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:B1C:PBOosting <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:B1C:PBOosting?
SCPI Example	RADio:GNSS:WAVeform:CCAR:BEID:B1C:PBO -3 RADio:GNSS:WAVeform:CCAR: BEID:B1C:PBO?
Preset	-3
State Saved	Yes
Range	-40 to 0
Initial S/W Revision	A.18.00

B2a Power Boosting

Sets the BeiDou B2a power boosting compared to reference power. This setting is visible only when B2a is set to ON.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:B2A:PBOosting <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:B2A:PBOosting?
SCPI Example	RADio:GNSS:WAVeform:CCAR:BEID:B2A:PBO -3 RADio:GNSS:WAVeform:CCAR: BEID:B2A:PBO?
Preset	0
State Saved	Yes
Range	-40 to 0
Initial S/W Revision	A.18.00

Advanced Settings

GPS L5 Pseudorange Offset

Sets the offset value, in meters, that applies to L5 pseudorange offset. This setting is for debugging and advanced use cases only.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:L5PR:OFFSet <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:L5PR:OFFSet?
SCPI Example	RAD:GNSS:WAV:CCAR:GPS:L5PR:OFFS -3 RAD:GNSS:WAV:CCAR:GPS:L5PR:OFFS?
Preset	0
State Saved	Yes
Range	-50 to 50
Initial S/W Revision	A.16.00

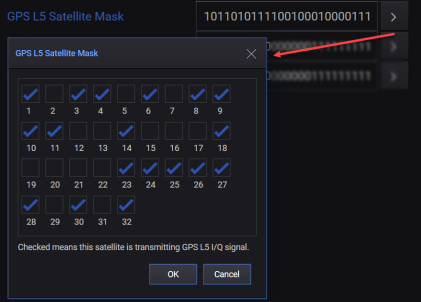

GPS L5 Satellite Mask

Sets which GPS satellites are transmitting the L5 signal. You can click the button displayed with this field to edit this setting in the GPS L5 Satellite Mask dialog box as shown below.

'1' or 'checked' means that the satellite is transmitting L5 signal.
'0' or 'unchecked' means that the satellite is not transmitting L5 signal.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:L5:SATellite:MASK <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:L5:SATellite:MASK?
SCPI Example	RAD:GNSS:WAV:CCAR:GPS:L5:SAT:MASK '10110101111001000100001111110101' RAD:GNSS:WAV:CCAR:GPS:L5:SAT:MASK?
Preset	10110101111001000100001111110101
State Saved	Yes
Range
Initial S/W Revision	A.18.00

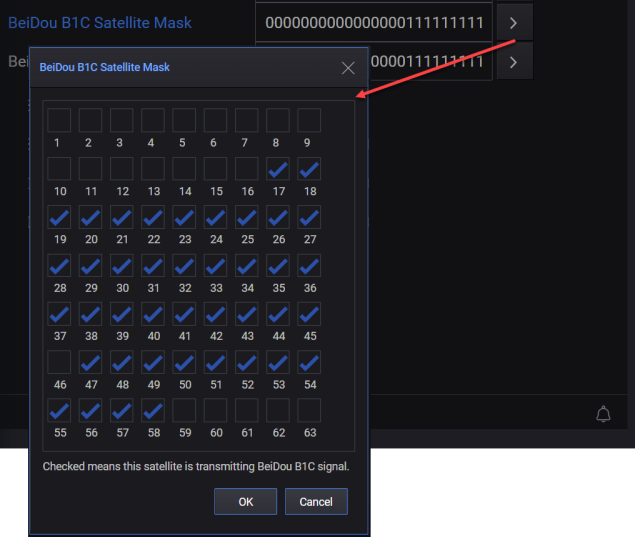

BeiDou B1C Satellite Mask

Sets which BeiDou satellites are transmitting the B1C signal. You can click the button displayed with this field to edit this setting in the BeiDou B1C Satellite Mask dialog box as shown below.

'1' or 'checked' means that the satellite is transmitting B1C signal.
'0' or 'unchecked' means that the satellite is not transmitting B1C signal.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:B1C:SATellite:MASK <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:B1C:SATellite:MASK?
SCPI Example	RAD:GNSS:WAV:CCAR:BEID:B1C:SAT:MASK '000000000000000011111111111111111111111111111011111111111100000' RAD:GNSS:WAV:CCAR:BEID:B1C:SAT:MASK?
Preset	000000000000000011111111111111111111111111111011111111111100000
State Saved	Yes
Range
Initial S/W Revision	A.18.00

BeiDou B2a Satellite Mask

Sets which BeiDou satellites are transmitting the B2a signal. You can click the button displayed with this field to edit this setting in the BeiDou B2a Satellite Mask dialog box as shown below.

'1' or 'checked' means that the satellite is transmitting B2a signal.
'0' or 'unchecked' means that the satellite is not transmitting B2a signal.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:B2A:SATellite:MASK <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:B2A:SATellite:MASK?
SCPI Example	RAD:GNSS:WAV:CCAR:BEID:B2A:SAT:MASK '000000000000000011111111111111111111111111111011111111111100000' RAD:GNSS:WAV:CCAR:BEID:B2A:SAT:MASK?
Preset	000000000000000011111111111111111111111111111111111111111100000
State Saved	Yes
Range
Initial S/W Revision	A.18.00

Scenario Settings

The parameters in the Scenario Settings tab are further grouped into the following three tabs.

General Settings
Orbit Settings
Atmosphere Models

General Settings

Scenario Type

Select the scenario type to be generated.

If you select Static, static scenarios will be generated for a static GPS receiver with fixed longitude, latitude, and altitude.
If you select Dynamic, dynamic scenarios will be generated for a moving GPS receiver based on the provided trajectory data.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:STYPe STATic\|UTFile\|TGSettings [:SOURce]:RADio:GNSS:WAVeform:CCARrier:STYPe?
SCPI Example	RADio:GNSS:WAVeform:CCAR:STYP STAT RADio:GNSS:WAVeform:CCAR:STYP?
Preset	STAT
State Saved	Yes
Range	STATic\|UTFile\|TGSettings
Initial S/W Revision	A.18.00

Receiver Longitude

Positive values are for the East and negative values are for the West. Inputing a negative value can change the suffix from W to E or from E to W.

This setting is displayed and valid only when Scenario Type is Static.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:LONGitude <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:LONGitude?
SCPI Example	RADio:GNSS:WAVeform:CCAR:LONG 116 RADio:GNSS:WAVeform:CCAR:LONG?
Preset	122.711557
State Saved	Yes
Range	-180 to 180
Initial S/W Revision	A.16.00

Receiver Latitude

Positive values are for the North and negative values are for the South. Inputing a negative value can change the suffix from S to N or from N to S.

This setting is displayed and valid only when Scenario Type is Static.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:LATitude <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:LATitude?
SCPI Example	RADio:GNSS:WAVeform:CCAR:LAT 0 RADio:GNSS:WAVeform:CCAR:LAT?
Preset	38.48181
State Saved	Yes
Range	-90 to 90
Initial S/W Revision	A.16.00

Receiver Altitude

This setting is displayed and valid only when Scenario Type is Static.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:ALTitude <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:ALTitude?
SCPI Example	RADio:GNSS:WAVeform:CCAR:ALT 100 RADio:GNSS:WAVeform:CCAR:ALT?
Preset	170
State Saved	Yes
Range	-100 to 18828
Initial S/W Revision	A.16.00

Trajectory File

Select a trajectory file for dynamic scenario creation.

This file can be a:

NMEA message file, which contains GGA messages. The sampling rate of input NMEA message file should be 1 Hz or higher. The minimum sampling points in the file is 3.
csv file containing one position per line. Each line has latitude, longitude and altitude separated by a comma.

This setting is displayed and is valid only when Scenario Type is User Trajectory file.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:NMEA:FILE <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:NMEA:FILE?
SCPI Example	RADio:GNSS:WAVeform:CCAR:NMEA:FILE "c:\temp\test.gga" RADio:GNSS:WAVeform:CCAR:NMEA:FILE?
Preset	System demo file
State Saved	Yes
Initial S/W Revision	A.16.00

Trajectory Mode

Select the mode of importing NMEA data into scenario generation. When the NMEA message file reaches the end, you can choose to:

hold at the last location
or make an auto rewind to the beginning
or make a round trip back.

This setting is displayed and valid only when Scenario Type is Dynamic.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:TRAJectory:MODE REWind\| HOLD\|ROUNdtrip [:SOURce]:RADio:GNSS:WAVeform:CCARrier:TRAJectory:MODE?
SCPI Example	RADio:GNSS:WAVeform:CCAR:TRAJ:MODE ROUN RADio:GNSS:WAVeform:CCAR:TRAJ:MODE?
Preset	REWind
State Saved	Yes
Range	REWind\| HOLD\|ROUNdtrip
Initial S/W Revision	A.16.00

Start Time (GPS Time)

Sets the start date and GPS time for the scenario simulation. Start GPS Time must be later than 1980-01-06 00:00:00. It is automatically updated by Time of Application (TOA) information in the selected almanac file.

For dynamic scenarios, the start time is automatically updated by the first GGA message in the selected NMEA file.

You can ignore the auto-updated date time and manually enter your own value, but it is recommended to use the same date as the almanac date and make the start time on a 6 second boundary.

Using the Start GPS Time dialog or SCPI commands, you can set the Start GPS Time in the following two ways.

Set Date and Time
Set Week and TOW. Here, Week is the week number from 1980-01-06 and TOW is the number of seconds from the start of the current week.

Whichever way you use, the specified set of values result in automatic calculation of the other set of values. For instance, if you set the Date and Time values, then the Week and TOW values are automatically calculated.

Start GPS Time (Date and Time)

The format of Start GPS Date and Time is 'YYYY-MM-DD hh:mm:ss'.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:STARt:GPS:DTIMe <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:STARt:GPS:DTIMe?
SCPI Example	RADio:GNSS:WAVeform:CCAR:STAR:GPS:DTIM "2024-01-05 12:00:00" RADio:GNSS:WAVeform:CCAR:STAR:GPS:DTIM?
State Saved	Yes
Initial S/W Revision	A.16.00

Start GPS Time (Week)

Sets the week for Start GPS Time. This is the week number from 1980-01-06.

You can either set "Start GPS Time" or "Start GPS Time (Week)" and "Start GPS Time (TOW)".

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:STARt:GPS:WEEK [:SOURce]:RADio:GNSS:WAVeform:CCARrier:STARt:GPS:WEEK?
SCPI Example	RADio:GNSS:WAVeform:CCAR:STAR:GPS:WEEK 2057 RADio:GNSS:WAVeform:CCAR:STAR:GPS:WEEK?
Preset	2347
Range	0 to 8192
State Saved	Yes
Initial S/W Revision	A.16.00

Start GPS Time (TOW)

Sets the Time of Week (TOW) for Start GPS Time. This is the number of seconds from the start of the current week.

You can either set "Start GPS Time" or "Start GPS Time (Week)" and "Start GPS Time (TOW)".

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:STARt:GPS:TOW [:SOURce]:RADio:GNSS:WAVeform:CCARrier:STARt:GPS:TOW?
SCPI Example	RADio:GNSS:WAVeform:CCAR:STAR:GPS:TOW 0 RADio:GNSS:WAVeform:CCAR:STAR:GPS:TOW?
Preset	259200
Range	0 to 604800
State Saved	Yes
Initial S/W Revision	A.16.00

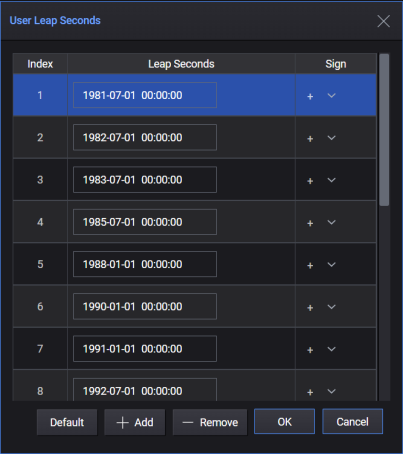

Leap Seconds Model

Selects whether or not to use the official leap seconds.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:LSEConds:MODel OFFicial\|UDEFined [:SOURce]:RADio:GNSS:WAVeform:CCARrier:LSEConds:MODel?
SCPI Example	RAD:GNSS:WAV:CCAR:LSEC:MOD OFF RAD:GNSS:WAV:CCAR:LSEC:MOD?
Preset	OFFicial
State Saved	Yes
Range	OFFicial\|UDEFined
Initial S/W Revision	A.18.00

User Leap Seconds

Sets the leap seconds list that is used instead of official leap seconds. This setting is applicable only when Leap Second Model is set to "User Defined".

You can click the button displayed with this field to edit this setting in the User Leap Seconds dialog box as shown below.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:LSEConds:MODel:PARameters <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:LSEConds:MODel:PARameters?
SCPI Example	RAD:GNSS:WAV:CCAR:LSEC:MOD:PAR "18 Leap Seconds Defined;1981-07-01 00:00:00,p;1982-07-01 00:00:00,p;1983-07-01 00:00:00,p;1985-07-01 00:00:00,p;1988-01-01 00:00:00,p;1990-01-01 00:00:00,p;1991-01-01 00:00:00,p;1992-07-01 00:00:00,p;1993-07-01 00:00:00,p;1994-07-01 00:00:00,p;1996-01-01 00:00:00,p;1997-07-01 00:00:00,p;1999-01-01 00:00:00,p;2006-01-01 00:00:00,p;2009-01-01 00:00:00,p;2012-07-01 00:00:00,p;2015-07-01 00:00:00,p;2017-01-01 00:00:00,p" RADio:GNSS:WAV:CCAR:LSEC:MOD:PAR?
Preset	"18 Leap Seconds Defined;1981-07-01 00:00:00,p;1982-07-01 00:00:00,p;1983-07-01 00:00:00,p;1985-07-01 00:00:00,p;1988-01-01 00:00:00,p;1990-01-01 00:00:00,p;1991-01-01 00:00:00,p;1992-07-01 00:00:00,p;1993-07-01 00:00:00,p;1994-07-01 00:00:00,p;1996-01-01 00:00:00,p;1997-07-01 00:00:00,p;1999-01-01 00:00:00,p;2006-01-01 00:00:00,p;2009-01-01 00:00:00,p;2012-07-01 00:00:00,p;2015-07-01 00:00:00,p;2017-01-01 00:00:00,p"
State Saved	Yes
Range
Initial S/W Revision	A.18.00

Elevation Mask Angle

Enter the angle above the horizon which constitutes valid satellite data. The software only recognizes satellites that appear above the mask angle. Satellites below this angle will not be used. Increasing this angle will reduce the number of visible satellites in the generated scenario.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:EMANgle <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:EMANgle?
SCPI Example	RAD:GNSS:WAV:CCAR:EMAN 5 RAD:GNSS:WAV:CCAR:EMAN?
Preset	5
State Saved	Yes
Range	0 to 30
Initial S/W Revision	A.16.00

Orbit Settings

Orbit Data Type

Select which Orbit Data Type to be used to calculate satellite position and generate ephemeris.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:ORBit:TYPE ALManac\| RINex\|MRINex [:SOURce]:RADio:GNSS:WAVeform:CCARrier:ORBit:TYPE?
SCPI Example	RADio:GNSS:WAVeform:CCAR:ORB:TYPE ALM RADio:GNSS:WAVeform:CCAR:ORB:TYPE?
Preset	ALManac
State Saved	Yes
Range	ALManac\|RINex\|MRINex
Initial S/W Revision	A.18.00

GPS Almanac File

Select the GPS almanac data file in YUMA format for scenario creation.

This setting is applicable and visible only when the Orbit Data Type is set to Almanac.

You can download the current GPS almanac file from the following URL.
https://www.navcen.uscg.gov/sites/default/files/gps/almanac/current_yuma.alm

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:ALManac <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:ALManac?
SCPI Example	RADio:GNSS:WAVeform:CCAR:GPS:ALM "c:\temp\test.alm" RADio:GNSS:WAVeform:CCAR:GPS:ALM?
Preset	System demo file
State Saved	Yes
Initial S/W Revision	A.16.00

Galileo Almanac File

Select Galileo almanac data file in XML format for scenario creation.

This setting is applicable and visible only when the Orbit Data Type is set to Almanac.

You can download the current Galileo almanac file from the following URL.
https://www.gsc-europa.eu/gsc-products/almanac

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GALileo:ALManac <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:GALileo: ALManac?
SCPI Example	RADio:GNSS:WAVeform:CCAR:GAL:ALM "c:\temp\test.xml" RADio:GNSS:WAVeform:CCAR:GAL:ALM?
Preset	System demo file
State Saved	Yes
Initial S/W Revision	A.16.00

BeiDou Almamac File

Select BeiDou almanac data file in YUMA format for scenario creation.

This setting is applicable and visible only when the Orbit Data Type is set to Almanac.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:ALManac <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:ALManac?
SCPI Example	RADio:GNSS:WAVeform:CCAR:BEID:ALM "c:\temp\test.alm" RADio:GNSS:WAVeform:CCAR:BEID:ALM?
Preset	System demo file
State Saved	Yes
Initial S/W Revision	A.18.00

GPS RINEX File

Select GPS RINEX file with version no less than 3.0 for scenario creation. The file name always ends with "_GN.rnx".

This setting is applicable and visible only when the Orbit Data Type is set to RINEX.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:RINex <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:RINex?
SCPI Example	RADio:GNSS:WAVeform:CCAR:GPS:RIN "c:\temp\test.rnx" RADio:GNSS:WAVeform:CCAR:GPS:RIN?
Preset	System demo file
State Saved	Yes
Initial S/W Revision	A.18.00

Galileo RINEX File

Select Galileo RINEX file with version no less than 3.0 for scenario creation. The file name always ends with "_EN.rnx".

This setting is applicable and visible only when the Orbit Data Type is set to RINEX.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GALileo:RINex <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:GALileo:RINex?
SCPI Example	RADio:GNSS:WAVeform:CCAR:GAL:RIN "c:\temp\test.rnx" RADio:GNSS:WAVeform:CCAR:GAL:RIN?
Preset	System demo file
State Saved	Yes
Initial S/W Revision	A.18.00

BeiDou RINEX File

Select BeiDou RINEX file with version no less than 3.0 for scenario creation. The file name always ends with “_CN.rnx”.

This setting is applicable and visible only when the Orbit Data Type is set to RINEX.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:RINex <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:RINex?
SCPI Example	RAD:GNSS:WAV:CCAR:BEID:RIN "c:\temp\test.rnx" RAD:GNSS:WAV:CCAR:BEID:RIN?
Preset	System demo file
State Saved	Yes
Initial S/W Revision	A.18.00

Mixed RINEX File

Select Mixed RINEX file with version no less than 3.0 for scenario creation. The file name always ends with “_MN.rnx”.

This setting is applicable and visible only when the Orbit Data Type is set to Mixed RINEX.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:MIXed:RINex <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:MIXed:RINex?
SCPI Example	RAD:GNSS:WAV:CCAR:MIX:RIN "c:\temp\test_MN.rnx" RAD:GNSS:WAV:CCAR:MIX:RIN?
Preset	System demo file
State Saved	Yes
Initial S/W Revision	A.18.00

GPS Navigation Message

Select which GPS navigation message type is to be used in RINEX. This setting is read-only because only "LNAV (L1 C/A)" is supported.

This setting is applicable and visible only when the Orbit Data Type is set to RINEX or Mixed RINEX.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GPS:NAV?
SCPI Example	RAD:GNSS:WAV:CCAR:GPS:NAV?
Preset	LNAV
State Saved	Yes
Initial S/W Revision	A.18.00

BeiDou Navigation Message

Select which BeiDou navigation message type is to be used in RINEX. This setting is read-only because only "D1/D2 (B1I)" is supported.

This setting is applicable and visible only when the Orbit Data Type is set to RINEX or Mixed RINEX.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:NAV?
SCPI Example	RAD:GNSS:WAV:CCAR:BEID:NAV?
Preset	D1D2
State Saved	Yes
Initial S/W Revision	A.18.00

Atmosphere Models

Troposphere Model

Select the troposphere model applied to satellite signals in the generated scenario.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:TROPosphere:MODel NONE\|NATO\|HOPField\|SAAStamoinen\|UNB3\|WAAS\|ALTShuler [:SOURce]:RADio:GNSS:WAVeform:CCARrier:TROPosphere:MODel?
SCPI Example	RADio:GNSS:WAVeform:CCAR:TROP:MOD NATO RADio:GNSS:WAVeform:CCAR:TROP:MOD?
Preset	NATO
State Saved	Yes
Range	NONE\|NATO\|HOPField\|SAAStamoinen\|UNB3\|WAAS\|ALTShuler
Initial S/W Revision	A.16.00

GPS Ionosphere Model

Select the Ionosphere model applied to satellite signals in the generated scenario.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:IONosphere:MODel NONE\|KLOBuchar [:SOURce]:RADio:GNSS:WAVeform:CCARrier:IONosphere:MODel?
SCPI Example	RADio:GNSS:WAVeform:CCAR:ION:MOD KLOB RADio:GNSS:WAVeform:CCAR:ION:MOD?
Preset	KLOB
State Saved	Yes
Range	NONE\|KLOBuchar
Initial S/W Revision	A.16.00

Galileo Ionosphere Model

Select the Ionosphere model applied to Galileo satellite signals in the generated scenario.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:GALileo:IONosphere:MODel NONE\|KLOBuchar\|NEQuick [:SOURce]:RADio:GNSS:WAVeform:CCARrier:GALileo:IONosphere:MODel?
SCPI Example	RADio:GNSS:WAVeform:CCAR:GAL:ION:MOD KLOB RADio:GNSS:WAVeform:CCAR:GAL:ION:MOD?
Preset	NEQuick
State Saved	Yes
Range	NONE\|KLOBuchar\|NEQuick
Initial S/W Revision	A.18.00

BeiDou Ionosphere Model

Select the Ionosphere model applied to BeiDou satellite signals in the generated scenario.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:IONosphere:MODel NONE\|KLOBuchar\|BDGim [:SOURce]:RADio:GNSS:WAVeform:CCARrier:BEIDou:IONosphere:MODel?
SCPI Example	RADio:GNSS:WAVeform:CCAR:BEID:ION:MOD KLOB RADio:GNSS:WAVeform:CCAR: BEID:ION:MOD?
Preset	KLOBuchar
State Saved	Yes
Range	NONE\|KLOBuchar\|BDGim
Initial S/W Revision	A.18.00

Klobuchar Ionosphere Parameters

This property displays Alpha[n] and Beta[n] values configured for the Klobuchar Ionosphere Model.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:IONosphere::[KLOBuchar:]PARameters <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:IONosphere: [KLOBuchar:]PARameters?
SCPI Example	RADio:GNSS:WAVeform:CCAR:ION:PAR "4.6566129E-9,1.4901161E-8,-5.96046E-8,-5.96046E-8,79872,65536,-65536,-393216 RADio:GNSS:WAVeform:CCAR:ION:PAR?
Preset	2.7940E-08,2.2352E-08,-1.1921E-07,5.9605E-08,1.5155E+05,-1.9661E+05,-6.5536E+04,3.2768E+05
State Saved	Yes
Initial S/W Revision	A.16.00

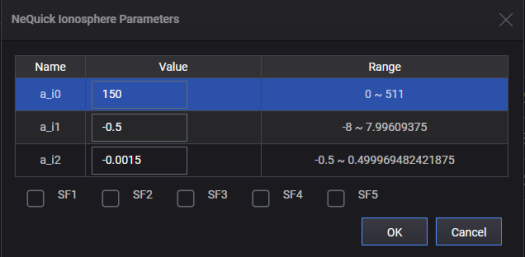

NeQuick Ionosphere Parameters

This property displays a_i[n] and SF[n] values configured for the NeQuick Ionosphere Model.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:IONosphere:NEQuick:PARameters <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:IONosphere:NEQuick:PARameters?
SCPI Example	RADio:GNSS:WAVeform:CCAR:ION:NEQ:PAR "150,-0.5,-1.5e-3,00000" RADio:GNSS:WAVeform:CCAR:ION:NEQ:PAR?
Preset	150,-0.5,-1.5e-3,00000
State Saved	Yes
Range
Initial S/W Revision	A.16.00

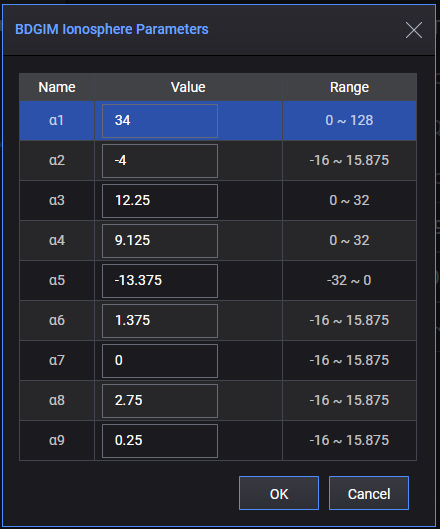

BDGIM Ionosphere Parameters

This property displays Alpha[n] values configured for the BDGIM Ionosphere Model.

SCPI Command	[:SOURce]:RADio:GNSS:WAVeform:CCARrier:IONosphere:BDGim:PARameters <value> [:SOURce]:RADio:GNSS:WAVeform:CCARrier:IONosphere:BDGim:PARameters?
SCPI Example	RADio:GNSS:WAVeform:CCAR:ION:BDG:PAR "34,-4,12.25,9.125,-13.375,1.375,0,2.75,0.25" RADio:GNSS:WAVeform:CCAR:ION:BDG:PAR?
Preset	34,-4,12.25,9.125,-13.375,1.375,0,2.75,0.25
State Saved	Yes
Range
Initial S/W Revision	A.18.00

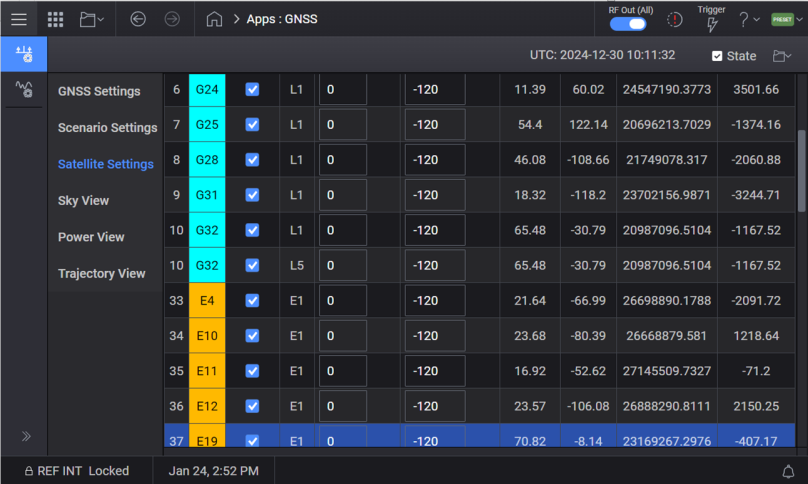

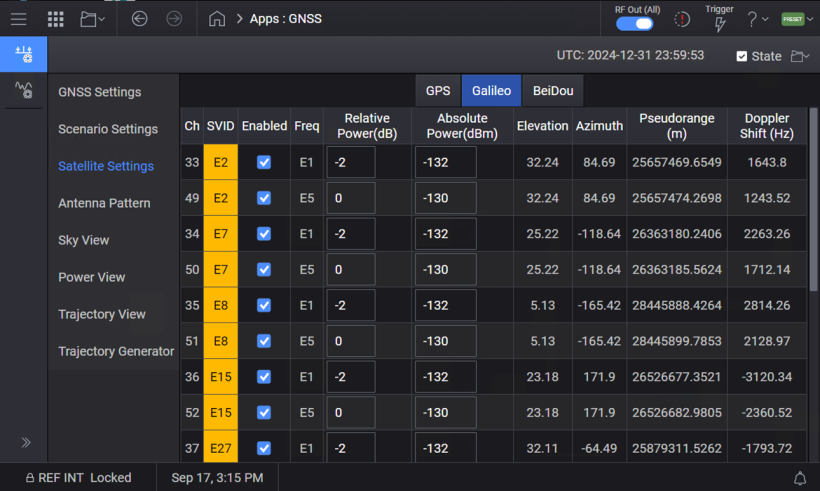

Satellite Settings

The Satellite Settings tab displays the satellite information after playing, and is also used to enable/disable and set the power for each played satellite.

When State is set to On:

Settings listed in the table below are visible and their values are refreshed per second.
"Enabled", "Relative Power (dB)", and "Absolute Power (dBm)" settings are editable.

Setting	Name	Description
Ch	Channel	Physical Channel Number
SVID	Space Vehicle ID	G means GPS. E means Galileo. B means BeiDou.
Enabled	Enabled
Freq	Frequency Band	It can be: L1 and L5 for GPS E1 and E5 for Galileo B1I/B1C and B2a for BeiDou
Relative Power (dB)	Relative Power in dB	These two settings are coupled. If one is changed, the other will change to the correct value.
Absolute Power(dBm)	Absolute Power in dBm
Elevation	Elevation	Displays the angle of elevation of the satellite, in degrees. Elevation is the angle of elevation from the horizontal line to the line from receiver to satellite.
Azimuth	Azimuth	Displays the azimuth of the satellite, in degrees. Azimuth is a horizontal angle that starts from the north and goes clockwise.
The following figure illustrates the azimuth and elevation. Elevation ranges from -90 to 90 degrees and the zenith is 90 degrees. Azimuth ranges from 0 to 360 degrees. 90 degrees is the east and 180 degrees is the south.
Pseudorange(m)	Pseudorange in meter	Displays the pseudorange of the satellite with respect to the receiver, in meters. This value is calculated based on GPS L1.
Doppler Shift (Hz)	Doppler Shift effect in Hz	Displays the instant Doppler shift of a satellite towards the receiver. The value, in Hz, is calculated based on GPS L1.

Querying or setting these settings using SCPI commands is not supported.

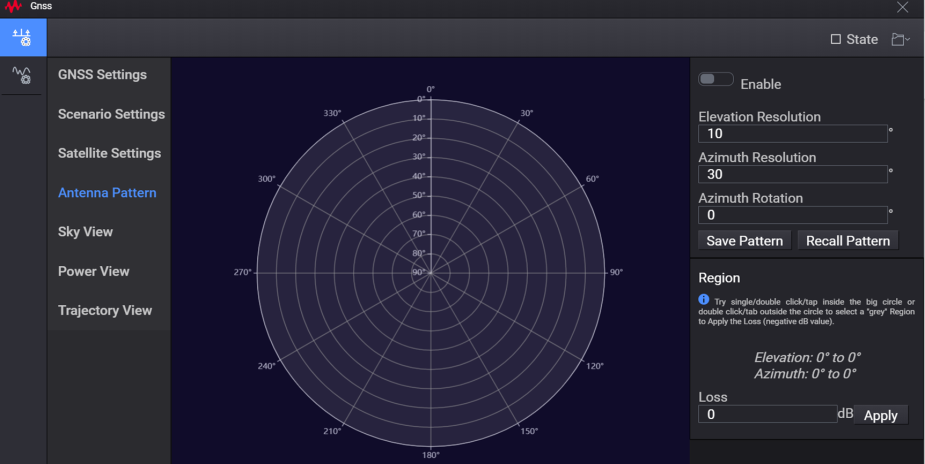

Antenna Pattern

Antenna Pattern is used to display the antenna pattern of receiver.

All settings and buttons are read-only when State is On.

Setting Name	Min Value	Max Value	Default Value	Step Size	Description
Enable	N/A	N/A	Off (On)	N/A	Antenna Pattern Enable/Disable
Elevation Resolution	1	90	10	0.01	Set the Elevation Resolution
Azimuth Resolution	1	90	30	0.01	Set the Azimuth Resolution
Azimuth Rotation	0	360	0	0.01	Set the Azimuth Rotation
Loss	-60	0	0	0.01	You can single/double-click or tap inside the big circle or double-click/tap outside the circle to select a "grey" region. Then click Apply to apply the Loss (negative dB value).

Save Pattern / Recall Pattern is used to save/recall the settings listed above (except Enable) and the file is csv format.

Antenna Pattern Enable

SCPI Command	RAD:GNSS:WAV:CCAR:APAT[:STATe] ON\|OFF\|1\|0 RAD:GNSS:WAV:CCAR:APAT?
SCPI Example	RAD:GNSS:WAV:CCAR:APAT 1
Preset	0
State Saved	Yes
Initial S/W Revision	A.17.00

Antenna Pattern String

Use semi-colons (;) to separate the rows in the Antenna Pattern string. Refer to the SCPI example below.

SCPI Command	RAD:GNSS:WAV:CCAR:APAT:APST <value> RAD:GNSS:WAV:CCAR:APAT:APST?
SCPI Example	RAD:GNSS:WAV:CCAR:APAT:APST "KEYSIGHT,REV1,FILENAME,20,50,10;Azi/Elv 0,20,40,60,80,100;50,0,0,0,0,0;100,0,0,0,0,0;150,0,0,0,0,0;200,0,0,0,0,0;250,0,0,0,0,0;300,0,0,0,0,0;350,0,0,0,0,0;400,0,0,0,0,0" RAD:GNSS:WAV:CCAR:APAT:APST "KEYSIGHT,REV1,FILENAME,10,30,0;Azi/Elv 0,10,20,30,40,50,60,70,80,90;30,0,-10,-20,-40,0,0,0,0,0;60,0,0,0,0,0,0,0,0,0;90,0,0,0,0,0,0,0,0,0;120,0,0,0,0,0,0,0,0,0;150,0,0,0,0,0,0,0,0,0;180,0,0,0,0,0,0,0,0,0;210,0,0,0,0,0,0,0,0,0;240,0,0,0,0,0,0,0,0,0;270,0,0,0,0,0,0,0,0,0;300,0,0,0,0,0,0,0,0,0;330,0,0,0,0,0,0,0,0,0;360,0,0,0,0,0,0,0,0,0"
Preset	KEYSIGHT,REV1,FILENAME,10,30,0 Azi/Elv 0,10,20,30,40,50,60,70,80,90 30,0,0,0,0,0,0,0,0,0 60,0,0,0,0,0,0,0,0,0 90,0,0,0,0,0,0,0,0,0 120,0,0,0,0,0,0,0,0,0 150,0,0,0,0,0,0,0,0,0 180,0,0,0,0,0,0,0,0,0 210,0,0,0,0,0,0,0,0,0 240,0,0,0,0,0,0,0,0,0 270,0,0,0,0,0,0,0,0,0 300,0,0,0,0,0,0,0,0,0 330,0,0,0,0,0,0,0,0,0 360,0,0,0,0,0,0,0,0,0
State Saved	Yes
Initial S/W Revision	A.17.00

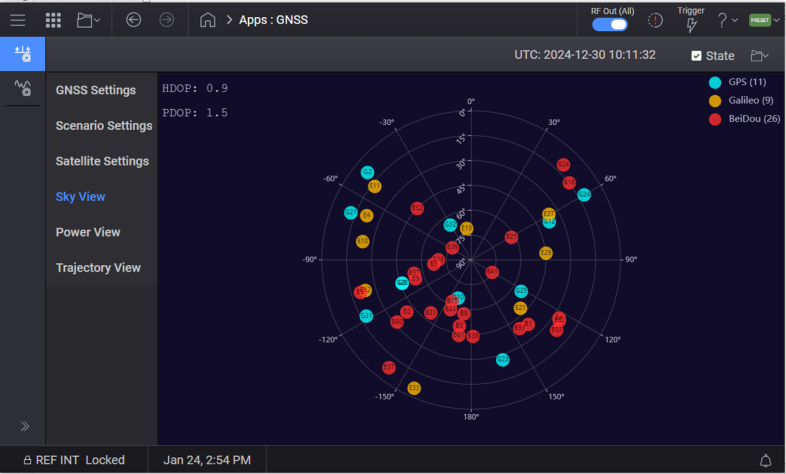

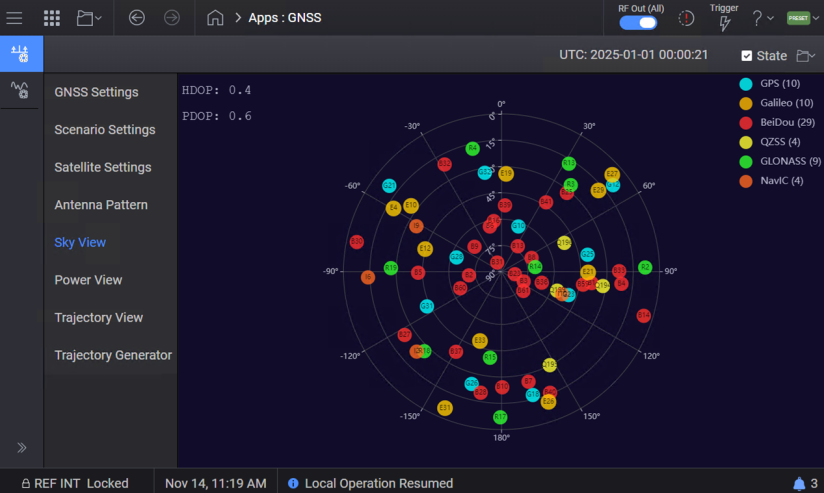

Sky View

Sky view is used to display the elevation and azimuth of the currently visible satellites, from a receiver’s point of view.

You can move mouse over a particular satellite to display a tooltip, showing detailed real-time information about the satellite, such as SV ID, Power, Pseudorange, and Doppler shift.

For L1+L5 satellite, only pseudorange and doppler shift of L1 are displayed in the tooltip.
For Galileo E1+E5 satellite, only pseudorange and doppler shift of E1 are displayed in the tooltip.
For BeiDou B1i/B1C/B2a satellite, only pseudorange and doppler shift of B1I are displayed in the tooltip.

You can click the legend of each constellations to show/hide all satellites in this constellation. This is for Sky view display only and real-time signal is not affected.

The Sky view is empty or displays the previous status of satellites when State is set to Off.

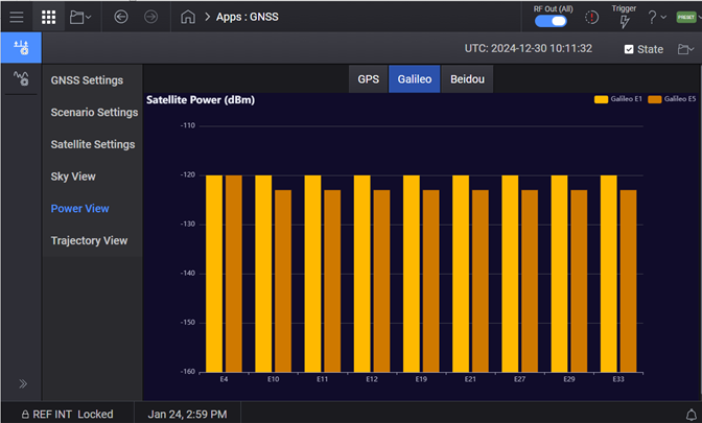

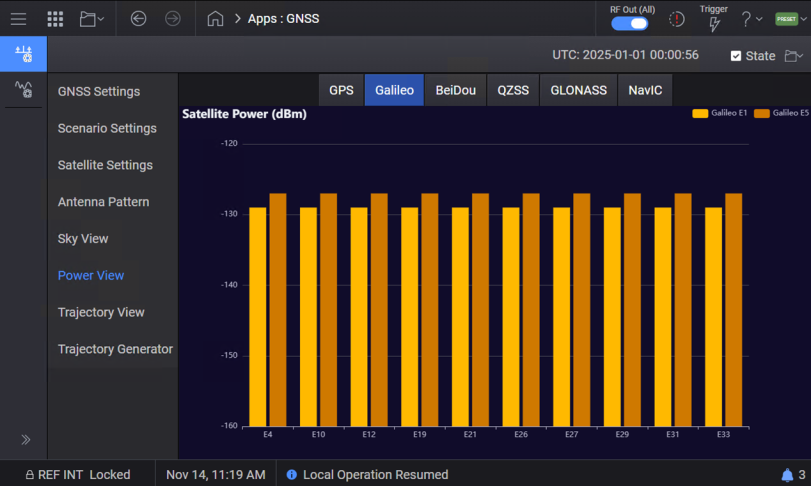

Power View

Power view is used to display the absolute power of each satellite.

The Power view is empty or displays the previous status of satellites when State is set to Off.

Trajectory View

Real-time Trajectory view is used to display the trajectory of receiver.

For Static scenario type, it will be only one point.

You can set the Reference position (Latitude and Longitude) and Max Deviation in the Map View Configuration, and click “Apply”. Or, you can click “Auto” to set the central position and scaling automatically.

The Trajectory view is empty or displays the previous status of satellites when State is set to Off.

Trajectory Generator

The parameters in the Trajectory Generator tab are further grouped into the following three tabs.

General Settings
Trajectory Settings - Various settings in this tab allow you to define the trajectory. There are three types of trajectory segments.
- Wait
- Straight
- Turn
Each segment supports a variety of configurable parameters, including:
- Duration
- Distance
- Acceleration
- Ending Velocity
- Angle
- Radius
- Climb

These parameters allow precise customization of the trajectory profile based on a specific test or simulation requirements.

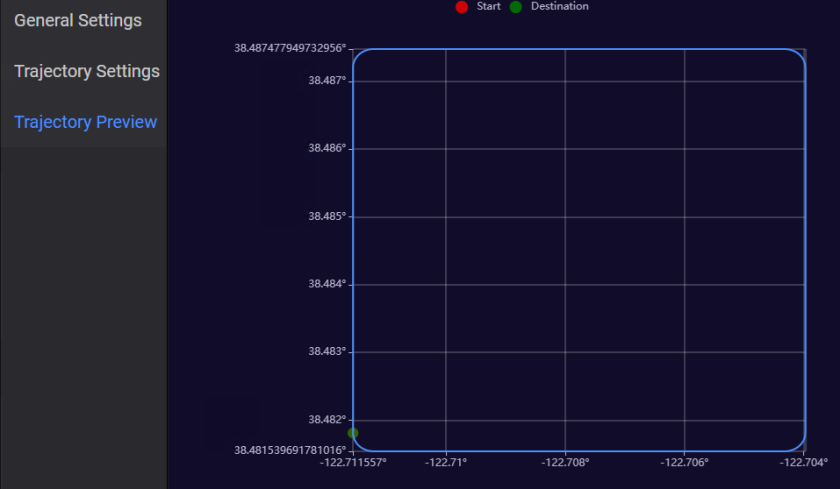

Trajectory Preview - This tab provides a visual preview of the trajectory that you defined in the Trajectory Settings. The start and destination points are clearly marked in this view to indicate the beginning and end of the trajectory. The following is a sample trajectory preview when the Shape is set to Rectangle in the Trajectory Settings tab.

General Settings

Receiver Longitude

SCPI Command	RADio:GNSS:WAVeform:CCARrier:TGENerator:LONGitude <value> RADio:GNSS:WAVeform:CCARrier:TGENerator:LONGitude?
SCPI Example	RAD:GNSS:WAV:CCAR:TGEN:LONG -122
Preset	-122.711557
State Saved	Yes
Range	-180 to 180
Initial S/W Revision	A.18.00

Receiver Latitude

SCPI Command	RADio:GNSS:WAVeform:CCARrier:TGENerator:LATitude<value> RADio:GNSS:WAVeform:CCARrier:TGENerator:LATitude?
SCPI Example	RAD:GNSS:WAV:CCAR:TGEN:LAT 40
Preset	38.48181
State Saved	Yes
Range	-90 to 90
Initial S/W Revision	A.18.00

Receiver Altitude

SCPI Command	RADio:GNSS:WAVeform:CCARrier:TGENerator:ALTitude <value> RADio:GNSS:WAVeform:CCARrier:TGENerator:ALTitude?
SCPI Example	RAD:GNSS:WAV:CCAR:TGEN:ALT 200
Preset	100
State Saved	Yes
Range	-100 to 18288
Initial S/W Revision	A.18.00

Initial Velocity

SCPI Command	RADio:GNSS:WAVeform:CCARrier:TGENerator:IVELocity <value> RADio:GNSS:WAVeform:CCARrier:TGENerator:IVELocity?
SCPI Example	RAD:GNSS:WAV:CCAR:TGEN:IVEL 100
Preset	0
State Saved	Yes
Range	0 to 600
Initial S/W Revision	A.18.00

Initial Direction (Azimuth Angle in Degrees)

SCPI Command	RADio:GNSS:WAVeform:CCARrier:TGENerator:IDIRection <value> RADio:GNSS:WAVeform:CCARrier:TGENerator:IDIRection?
SCPI Example	RAD:GNSS:WAV:CCAR:TGEN:IDIR 90
Preset	0
State Saved	Yes
Range	0 to 360
Initial S/W Revision	A.18.00

Sampling Rate

SCPI Command	RADio:GNSS:WAVeform:CCARrier:TGENerator:SRATe <value> RADio:GNSS:WAVeform:CCARrier:TGENerator:SRATe?
SCPI Example	RAD:GNSS:WAV:CCAR:TGEN:SRAT 10
Preset	1
State Saved	Yes
Range	1 to 20
Initial S/W Revision	A.18.00

Start Time (UTC)

SCPI Command	RADio:GNSS:WAVeform:CCARrier:TGENerator:STIMe <value> RADio:GNSS:WAVeform:CCARrier:TGENerator:STIMe?
SCPI Example	RAD:GNSS:WAV:CCAR:TGEN:STIM "12:00:00"
Preset	00:00:00
State Saved	Yes
Range	00:00:00 to 23.59.59
Initial S/W Revision	A.18.00

Basis for Segment Length

SCPI Command	RADio:GNSS:WAVeform:CCARrier:TGENerator:SLENgth DUR\|DIST RADio:GNSS:WAVeform:CCARrier:TGENerator:SLENgth?
SCPI Example	RAD:GNSS:WAV:CCAR:TGEN:SLEN DIST
Preset	DUR
State Saved	Yes
Range
Initial S/W Revision	A.18.00

Repeat Number

SCPI Command	RADio:GNSS:WAVeform:CCARrier:TGENerator:RNUMber <value> RADio:GNSS:WAVeform:CCARrier:TGENerator:RNUMber?
SCPI Example	RAD:GNSS:WAV:CCAR:TGEN:RNUM 1
Preset	1
State Saved	Yes
Range	1 to 100
Initial S/W Revision	A.18.00
