LTE Moving Propagation

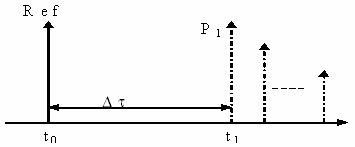

The LTE Moving Propagation condition tests a receiver’s ability to adjust to changing delay conditions. The ETU200 profile uses multiple paths (taps) and is based on a 200 Hz doppler frequency.  ClosedIllustration...

where

The AWGN Only profile uses a single path with a doppler frequency of 622.653 Hz.

When you select Moving Propagation in the Master Setup view as the fader profile, Delay, Min Delay, Max Delay and Rate of Oscillation can be set in the fader path columns.



Fading Profile

Parameter

ETU 200

AWGN Only

UE speed

120 km/h

350 km/h

CP length

Normal

Normal







A

10 µs

10 µs

0.04 s-1

0.13 s-1
