Upgrading the Signal Generator Firmware

Failure to follow this procedure may affect the signal generator’s compatibility with other software applications.



The signal generator may require a firmware upgrade to run the software. Use the following steps to load the latest version of firmware:

  1. Go to http://www.agilent.com/find/upgradeassistant.

  2. Click PSG/ESG Upgrade Assistant and install the program.

  3. Click the latest version of firmware for your signal generator model.

  4. Click Enhancements, Issues Resolved, and Hardware Compatibility, and check the compatibility information for the firmware release that you wish to download. If there is a compatibility problem, contact Agilent Technologies for assistance: http://www.agilent.com/find/contactus.

  5.  If there are no compatibility problems, return to the firmware page and click the firmware update to place the firmware files in the Upgrade Assistant folder.

  6. Run the Upgrade Assistant and follow the program prompts.

If you would like more information, click PSG/ESG Firmware Upgrade Guide.

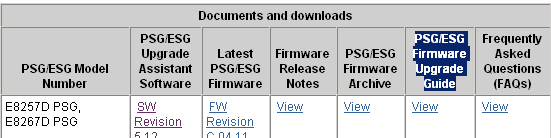

In the upgrade assistant window refer to the following table and click the upgrade guide for your signal generator.
