Group 1

The Group n enables the General Settings, Preamble Settings, DPCCH Settings, and HSUPA Settings for the CELL_FACH.

1. General Settings

2. Preamble Settings

Scrambling Code (PRACH)

Signature

Scrambling Code (DPCH)

Preamble Power

Nmax-dpdch

Pp-e

HS-DSCH Configured

Tp-a

DPCCH Only Part Length

Soffset

E-DCH Length

Access Slot

DTX Length in ms



DTX Length in Chip



Miscellaneous Information

   Preamble Info



   DPCCH Info



   E-DPCCH Info



   E-DPDCH Info



   E-DCH Info





3. DPCCH Settings

4. HSUPA Settings

Power

State

Slot Format

E-DCH TTI

TPC Pattern

E-TFCI Table Selection



E-TFC Index



Happy Bit



E-DPCCH Power



E-DPDCH Power



Modulation Capability



Maximum Channel Codes



E-DCH Data

W-CDMA (PRACH) Configuration Buttons

This section defines the W-CDMA/HSPA+ DPCCH/DPDCH's buttons. The Restore Default Settings button is available in all of the W-CDMA/HSPA+ Uplink (DPCCH/DPDCH) > Channel's tree nodes.

Restores all of the W-CDMA/HSPA+ channel's parameters to their default conditions.

1. General Settings

Scrambling Code (PRACH)

Range: 0 to 8191

Default: 0

Sets the scrambling code number for the PRACH part.

Scrambling Code (DPCH)

Range: 0 to 16777215

Default: 0

Sets the scrambling code number for the DPCH part.

Nmax-dpdch

Choice: 0 | 1

Default: 0

Sets the maximum number of DPDCH (Nmax-dpdch) to control the channel assignment.

HS-DSCH Configured

Choice: No | Yes

Default: Yes

Sets the HS-DSCH configured state to control channel assignment.

DPCCH Only Part Length

Range: 2 | 4 | 10 ms (HSUPA E-DCH TTI = 2 ms), 10 ms (HSUPA E-DCH TTI = 10 ms)

Default: 10 ms

Sets the DPCCH only part transmission length. This value selection is available when HSUPA E-DCH TTI is set to 2 ms. When HSUPA E-DCH TTI is set to 10 ms, this value is fixed to the selection of 10 ms.

E-DCH Length

Range: 10 to 5000 ms

Default: 10 ms

Sets the E-DCH transmission duration. The resolution of this value is aligned with the value of E-DCH TTI.

DTX Length in ms

Range: 10 to 500 ms

Default: 10 ms

Sets the DTX period of Group 1 in microseconds. DTX Length in Chip will be recalculated after setting this value. This value is adjusted by the values of DPCCH/HSUPA length of Group 1 and the value of HSUPA E-DCH TTI of Group 2.

DTX Length in Chip

Range: 38400 to 1920000

Default: 38400

Sets the DTX period of Group 1 in chip. DTX Length in ms will be recalculated after setting this value. This value is adjusted by the values of DPCCH/HSUPA length of Group 1 and the value of HSUPA E-DCH TTI of Group 2.

Miscellaneous Information

Preamble Info

Indicates the Preamble miscellaneous information.

Normalized power (NormPwr)

DPCCH Info

Indicates the DPCCH miscellaneous information.

Normalized power (NormPwr), IQ branch mapping (IQ), Channel code (ChCode), Spreading factor (SF).

E-DPCCH Info

Indicates the E-DPCCH miscellaneous information.

Normalized power (NormPwr), IQ branch mapping (IQ), Channel code (ChCode), Spreading factor (SF)

E-DPDCH Info

Indicates the E-DPDCH miscellaneous information.

Normalized power (NormPwr), IQ branch mapping (IQ), Channel code (ChCode), Spreading factor (SF)

E-DCH Info

Indicates the E-DCH miscellaneous information (i.e. Block size and Puncture rate).

2. Preamble Settings

Signature

Range 0 to 15

Default: 0

Sets the signature code of PRACH Preamble.

Preamble Power

Range: -50 to 10 dB

Default: -2.69 dB

Indicates the calculated PRACH Preamble power level in dB from DPCCH Power and Pp-e.

Power Preamble (Ppreamble) is calculated by:

Ppreamble = Pdpcch - Pp-e.

Pp-e

Range: -10 to 10 dB, Resolution: 1 dB

Default: 0 dB

Sets the PRACH Pp-e in dB.

Tp-a

Choice: 7680 | 12800

Default: 7680

Sets the Tp-a value expressed in units of chip. Tp-a specifies the time period (distance) between the PRACH preamble to the acquisition indication channels (AICH) frame.

Soffset

Range 0 to 9

Default: 6

Sets the Soffset of PRACH.

Access Slot

Range 0 to 59

Default: 0

Sets Preamble position.

3. DPCCH Settings

Power

Range: -40 to 0 dB

Default: -2.69 dB

Sets the DPCCH power level in dB.

Slot Format

Range: 1 | 3 | 4

Default: 1

Sets the slot format of DPCCH.

TPC Pattern

Choice: Up All | Down All | Custom Pattern

Default: Up All

Sets the TPC pattern of DPCCH.

4. HSUPA Settings

State

Choice: Off | On

Default: On

Enables or disables the HSUPA state. The state controls the channel generation of HSUPA of this group. The timing of Groups are not changed by the state value.

E-DCH TTI

Choice: 2 | 10 ms

Default: 10 ms

Sets the transmission time interval (TTI) of HSUPA E-DCH in ms.

E-TFCI Table Selection

Choice: 0 | 1

Default: 1

Sets the table number of E-DCH Transport Block Size Table.

E-TFC Index

Range: 0 to 127 (E-DCH TTI = 2ms, E-TFCI Table Selection = 0), 0 to 125 (E-DCH TTI = 2ms, E-TFCI Table Selection = 1), 0 to 127 (E-DCH TTI = 10ms, E-TFCI Table Selection = 0), 0 to 120 (E-DCH TTI = 10ms, E-TFCI Table Selection = 1)

Default: 41

Sets the E-TFC Index.

Happy Bit

Choice: Happy | Not Happy | Custom Pattern

Default: Happy

Sets the Happy Bit pattern.

Where User File is selected, the data file must be in binary format and specify the bit length.

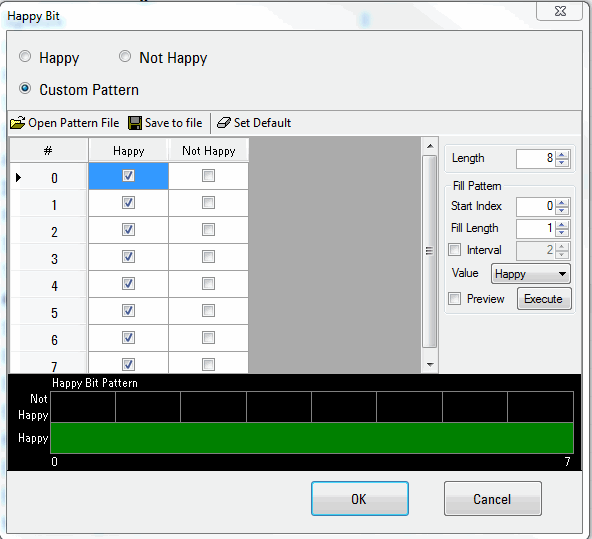

Clicking Custom Pattern opens an Closedextended Happy Bit window (i.e. for setting: Length, Fill Pattern, Start Index, Fill Length, Interval, Value, ...).

E-DPCCH Power

Range: -40 to 0 dB

Default: -2.69 dB

Sets the E-DPCCH power level in dB.

E-DPDCH Power

Range: -40 to 0 dB

Default: -2.69 dB

Sets the E-DPDCH power level in dB.

Modulation Capability

Choice: QPSK (2 x BPSK) | 16QAM (2 x 4PAM)

Default: QPSK

Sets the E-DPDCH modulation capability

Maximum Channel Codes

Choice: SF256 (x1) | SF128 (x1) | SF64 (x1) | SF32 (x1) | SF16 (x1) | SF8 (x1) | SF4 (x1) | SF4 (x2) | SF2 (x2) | SF2 (x2) + SF4 (x2)

Default: SF2 (x2) + SF4 (x2)

Selects Spreading Factor (SF) and the number of E-DPDCHs configuration.

E-DCH Data

Choice: PN9 | Custom Pattern

Default: PN9

Selects the data of E-DCH.
