Continuous Bluetooth Waveform Generation

The following example procedure shows you how to configure the Signal Studio software to create the continuous Bluetooth waveform with Basic Data Rate.

1. Select Bluetooth Basic Rate + Enhanced Rate from the Format drop-down menu.

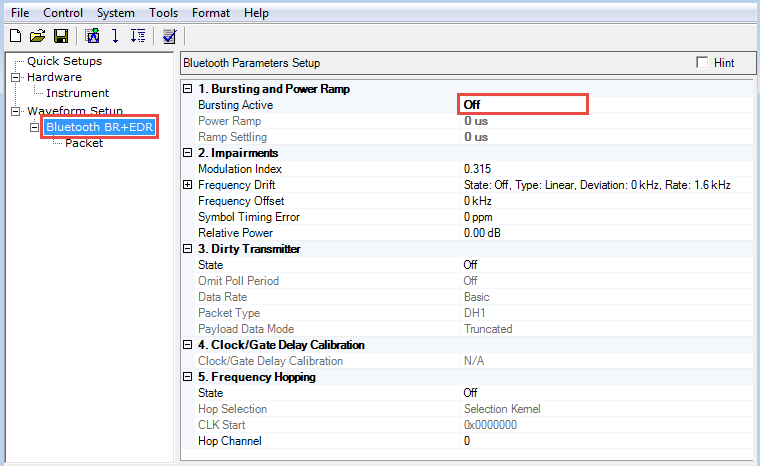

2. Click Bluetooth BR+EDR on the tree view on the left to configure the Bluetooth parameters.

   Change Bursting Active to Off.



3. Click the in the tool bar to generate and download the waveform to the signal generator.
