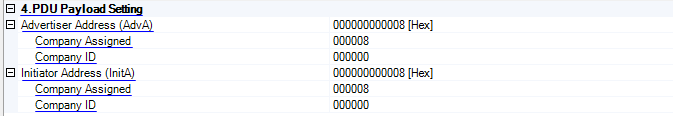

PDU Payload Setting (ADV_DIRECT_IND)

Advertiser Address [AdvA]

Range: 0x000000000000 to 0xffffffffffff

Default: 000000000008 [Hex]

Set the advertiser's public or random device address as indicated by TxAdd.

Company Assigned

Range: 0x000000 to 0xffffff

Default: 000008

Set the company assigned part of device address. It is the lower address part of device address consisting of 24 bits.

Company ID

Range: 0x000000 to 0xffffff

Default: 000000

Set the company ID part of device address. It is the upper address part of device address consisting of 24 bits.

Initiatorr Address [InitA]

Range: 0x000000000000 to 0xffffffffffff

Default: 000000000008 [Hex]

Set the initiator's public or random device address as indicated by RxAdd.

Company Assigned

Range: 0x000000 to 0xffffff

Default: 000008

Set the company assigned part of device address. It is the lower address part of device address consisting of 24 bits.

Company ID

Range: 0x000000 to 0xffffff

Default: 000000

Set the company ID part of device address. It is the upper address part of device address consisting of 24 bits.
