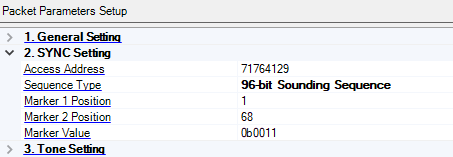

Range: 0x00000000 to 0xffffffff
Default: 71764129
Set the logical link specified address of Bluetooth low energy wireless technology packet.
Choice:
No Sequence
32-bit Sounding Sequence
96-bit Sounding Sequence
64-bit Random Sequence
96-bit Random Sequence
128-bit Random Sequence
32-bit Random Sequence
Default: No Sequence
Double-click or use the drop-down menu to set the sequence type of the CS SYNC packet.
Range: 1 to 64
Default: 1
Set the bit number where the first marker of the sounding sequence starts.
Range: 68 to 142
Default: 68
Set the bit number where the second marker of the sounding sequence starts.
Choice: b0011 or b1100
Default: b0011
Set the value of the sounding sequence marker.

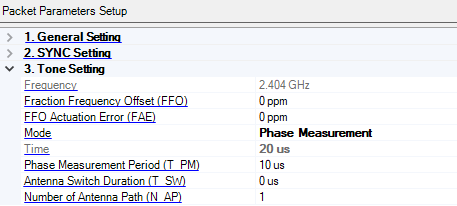

Default: 2.404 GHz
Coupling:
Display the average frequency of the transmitted CS Tone.
Range: -50 ppm to 50 ppm
Default: 0 ppm
Set the frequency offset normalized by the carrier frequency.
Range: -4 ppm to 3.96875 ppm
Default: 0 ppm
Set the value of FFO actuation error (FAE) for the CS channel.
Choice: Frequency Measurement | Phase Measurement
Default: Frequency Measurement
Set the mode for CS Tone. Frequency Measurement is for mode-0, while Phase Measurement is for mode-2 and mode-3.
For Frequency Measurement mode, time = 80 us
For Phase Measurement mode, time = (T_SW + T_PM) * (N_AP + 1)
Display the time duration of the CS Tone.
Choice: 10 | 20 | 40 us
Default: 10 us
Coupling: Phase Measurement mode only
Set the time in microseconds for the phase measurement period for the CS tone packet.
Choice: 0 | 1 | 2 | 4 | 10 us
Default: 0 us
Coupling: Phase Measurement mode only
Set the time in microseconds for the antenna switch period for the CS tone packet.
Range: 1 to 4
Default: 1
Coupling: Phase Measurement mode only
Set the number of antenna path for the CS tone packet.
