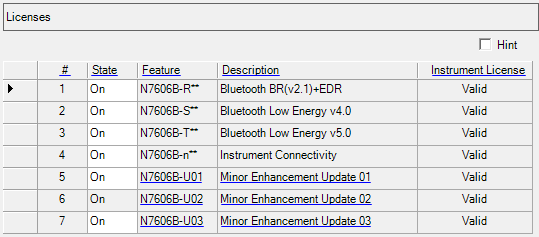

Licenses

Index Number

Displays the licensed feature’s index number.

State

Double-click or use the drop-down menu to set the operating state of the selected feature.

On – enables the feature.
Off – disables the feature.

The State cell color changes to red if a feature is set to On and there is not a valid license available, or the license is expired.

Feature

Displays the license option name for the feature or the capability options available in the software. All capability and connectivity options are locked to the target instrument. Feature capability is either Basic or Advanced. Feature connectivity is specific to the type of signal generator. The option number identifies the type of license, whether perpetual or time-based, fixed or transportable, and so on.

Feature Capability

Option Number	Capability Type	License Locked To:	Time Based
N7606B-Qxx	Advanced Capability	Target instrument serial number/bar code	Yes
N7606B-Rxx	Advanced Capability	Target instrument serial number/bar code	Yes
N7606B-Sxx	Advanced Capability	Target Instrument serial number/bar code	Yes

Feature Connectivity

Option Number	Connectivity Type	License Locked To:	Time Based
N7606B-1xx	ESG connectivity	Instrument serial number	Yes
N7606B-2xx	PSG connectivity	Instrument serial number	Yes
N7606B-3xx	MXG connectivity	Instrument serial number	Yes

Minor Enhancement Updates (N7606B-Uxx)

The minor enhancement updates (MEU) option allows you to obtain the latest capabilities of the software. It is purchased as N7606B-MEU. However, each enhancement update is licensed as N7606B-Uxx, as shown in the image above. As more enhancements become available, the option suffix increments: U01, U02, U03 and so on. Purchasing MEU includes all the capabilities from previous MEU licenses. For example, purchasing the license for U03 includes everything that was in U01 and U02. If you had purchased an earlier MEU license, such as U01, and want the most recent MEU capabilities available in U03, purchasing another MEU license upgrades your software to the most current state.

Release Date	Software Version	MEU License	Minor Enhancements
Sep 2015	3.7	U03	Support the maximum length of LL_DATA and reference packet of Low Energy up to 255 octets Support new LL Control Packets of Low Energy in Core_v4.1 and v4.2 Support maximum length of Packet Interval of Low Energy packet up to 150000 symbols
Sep 2014	3.6	U02	Added direct connectivity for the M9381A PXIe VSG. The M9381A has a limitation related to the Power Search and DC Cal functions. See System Requirements for more information. Added direct connectivity for the E6607 EXT
Nov 2013	3.5	U01	Added dirty transmitter support for low energy technology

Description

Displays a description of the licensed feature.

Instrument License

Displays the status of the selected license on the connected instrument(s).

Valid – the license is installed and active.
Invalid – the license is expired or not installed.
N/A – Not applicable.
No Info Available – Signal Studio software does not provide license information for the connected instrument.
