Bluetooth low energy wireless technology Packet Generation

The following example procedure shows how to create Bluetooth low energy wireless technology packets.

1. Select Bluetooth low energy technology from the Format in the menu bar.

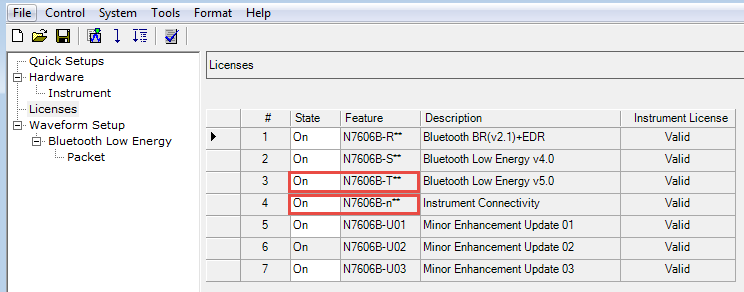

2. Click Licenses in the navigation tree on the left to ensure that the states for N7606B-T** (or N7606B-S**) and N7606B-n** are set to On.

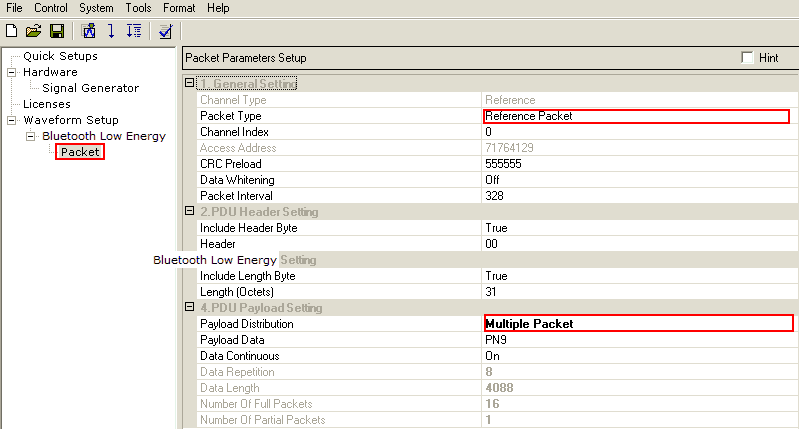

3. Click Packet in the tree view on the left to configure the packet parameters.

   Set Packet Type to Reference Packet.

   Change Payload Distribution to Multiple Packet.



4. Click the in the tool bar to generate and download the waveform to the signal generator.
