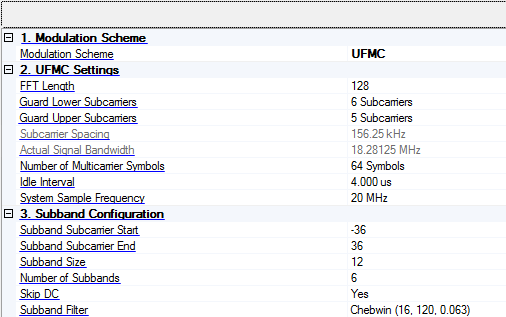

Choices: FBMC-OQAM | UFMC | GFDM | F-OFDM
Default: FBMC-OQAM
Select the modulation scheme for 5G.
Range: 4 to 16384
Default: 128
Set the FFT length of the OFDM signal. The input can now be set with non-powers of 2.
If the input FFT length is not divisible by 2, the input value is subtracted by one. For example, an input of 5 will become a valid value of 4.
An input of 6 is now valid for this feature.
Range: 0 to FFT Length / 2
Default: 6
Set the number of lower guard subcarriers. No data will be transmitted on these subcarriers.
Range: 0 - (FFT Length - Guard Lower Subcarriers - 1)
Default: 5
Set the number of upper guard subcarriers. No data will be transmitted on these subcarriers.
Display the subcarrier spacing. This value is read-only and will be automatically updated with FFT Length and System Sample Frequency change.
Display the actual signal bandwidth of the used subcarriers (FFT Length - Guard Lower Subcarriers - Guard Upper Subcarriers).
Range: 1 to 2000
Default: 64
Set the number of OFDM symbols in a frame that usually includes preamble symbols and data symbols.
Range: 0 to 200 ms
Default: 4 us
Set the idle interval in-between OFDM frames in seconds. When idle interval is set to zero, a continuous waveform will be generated.
Range: 1 kHz to 4 GHz
Default: 20 MHz
Set the system sampling rate in Hz.
Set the subcarrier start index of subband configuration, the subband subcarrier end is coupled after it changes.
Set the subcarrier end index of subband configuration, the subband subcarrier start is coupled after it changes.
Set the number of subcarriers for each subband, the subband end is coupled after it changes.
Set the number of subbands, the subband end is coupled after it changes.
Choices: Yes | No
Default: Yes
Set if DC is skipped between subbands. It is editable when DC is on the edge of subband, otherwise it is set to No and read-only.
Bring up the UFMC Subband Filter Editor to set the filter type and parameters.
