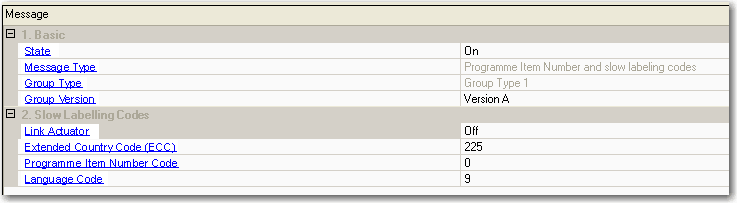

Choice: On | Off
Default: On
Set the state of the Message.
Set in the RDS Message list.
Range: Group Type 0 to Group Type 15
Default: Group Type 1
Illustrate the Type of the Group.
Choice: Version A | Version B
Default: Version A
Set the Version of the Group.
For Version A, the PI code is inserted in block 1 only; for Version B, the PI code is inserted in block 1 and block 3 of all group types.
Choice: On | Off
Default: Off
Set the Link Actuator indicator of Group Type specified above.
Range: 0 to 255
Default: 225
Set the Extended Country Code.
RDS uses its own country codes. The first most significant bits of the PI code carry the RDS country code. The four bit coding structure only permits the definition of 15 different codes, 1 to F(hex). Since there are many more countries to be identified, some countries have to share the same code which does not permit unique identification. There is the need for Extended Country Code (ECC).
Range: 0 to 65535
Default: 0
Set the Programme Item Number Code.
The transmitted Programme Item Number Code will be the scheduled broadcast start time and day of month as published by the broadcaster.
Range: 0 to 4095
Default: 9
Set the Language Code.
