XM Satellite Radio

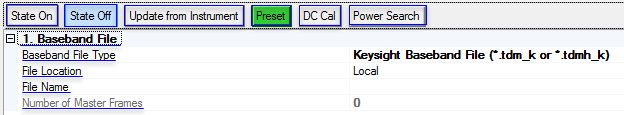

1. Baseband File

Baseband File Type

Choices: Demo File | Keysight Baseband File

Select Demo File or Keysight Baseband File to use the input of physical layer.

[:SOURce]:RADio:XM[:BBG]:BFILe:TYPe Demo File | Keysight Baseband File

[:SOURce]:RADio:XM[:BBG]:BFILe:TYPe ?

File Location

Choice: Local | Instrument

Default: Local

Double-click or use the drop-down menu to select where the payload is. The Local is recommended.

File Name

The name of the baseband file. Click the right button to select and open a tdm_k or tdmh_k file.

tdm_k file is for non-overlay setting and tdmh_k file can work for both overlay and non-overlay case. Contact Keysight or SiriusXM for more information.

[:SOURce]:RADio:XM[:BBG]:BFILe:FILe <File Location>

[:SOURce]:RADio:XM[:BBG]:BFILe:FILe ?

Number of Master Frames

Number of frames calculated from the file.

[:SOURce]:RADio:XM[:BBG]:BFILe:FRAMe <val>

[:SOURce]:RADio:XM[:BBG]:BFILe:FRAMe ?
