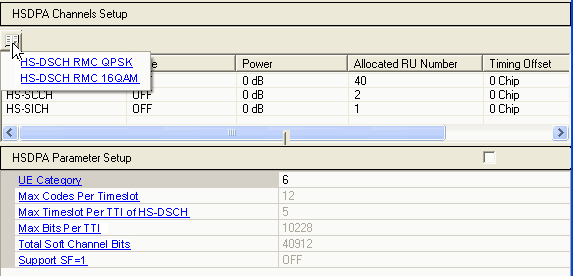

HSDPA Channels Setup

For HSDPA mode, the switching point in the Waveform Setup must be set at 1.

opens a window that allows you to select HS-DSCH RMC QPSK or HS-DSCH RMC 16QAM reference measurement channel as defined in TS 25.222. When selected, the precoded parameters for the channel are automatically set in the HS-DSCH window. Refer to RMC Configuration for details.

HSDPA Channel Summary Table

This table displays the HSDPA channel and its attributes as currently set. Double-clicking a channel row activates the setup tables for that channel.

HSDPA Parameter Setup

UE Category

Range: 1 to 15

Enter a value to select the ClosedUE category. All other parameters are automatically set depending on the selected category.

Category

Maximum number of HS-DSCH codes per timeslot

Maximum number of HS-DSCH codes per TTI

Maximum number of HS-DSCH transport channel bits that can be received within an HS-DSCH TTI

Total number of soft channel bits

Support of SF=1 for HS-DSCH

Category 1

12

5

7008

28160

Yes

Category 2

12

5

7008

56320

Yes

Category 3

12

5

7008

84480

Yes

Category 4

16

5

7008

28160

Yes

Category 5

16

5

7008

56320

Yes

Category 6

16

5

7008

84480

Yes

Category 7

12

5

10204

40944

Yes

Category 8

12

5

10204

81888

Yes

Category 9

12

5

10204

122832

Yes

Category 10

16

5

10204

40944

Yes

Category 11

16

5

10204

81888

Yes

Category 12

16

5

10204

122832

Yes

Category 13

16

5

14043

56320

Yes

Category 14

16

5

14043

112640

Yes

Category 15

16

5

14043

168960

Yes

Max Codes Per Timeslot

Range: 12, 16 depending on UE category

Displays the maximum number of codes per timeslot as specified by the UE category selection.

Max Timeslot Per TTI of HS-DSCH

Range: Fixed at 5

Displays the maximum number of codes per TTI of HS-DSCH as specified by the UE category selection.

Max Bits Per TTI

Range: 7008, 10204, 14043 depending on UE category

Displays the maximum number of bits per TTI as specified by the UE category selection.

Total Soft Channel bits

Range: depends on UE category.

Displays the total soft channel bits as specified by the UE category selection.

Support SF = 1

Choice: On or Off

Displays whether the UE category supports SF = 1.
