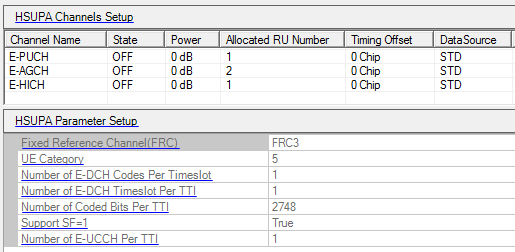

HSUPA Channels Setup

HSUPA Channel Summary Table

This table displays the HSUPA channel and its attributes as currently set. Double-clicking a channel row activates the setup tables for that channel.

HSUPA Parameter Setup

Fixed Reference Channel(FRC)

Choices: FRC1 | FRC2 | FRC3

Displays the E-DCH fixed reference channel.

UE Category

Range: 1 to 6

Displays the UE category of the HSUPA channel.

Number of E-DCH Codes Per Timeslot

Displays the number of codes per timeslot used by E-PUCH.

Number of E-DCH Timeslot Per TTI

Range: Fixed at 5

Displays the maximum number of timeslots per TTI used by HSUPA.

Number of Coded Bits Per TTI

Displays the number of transport channel bits that can be received within an E-DCH TTI.

Support SF=1

Choice: True or False

Displays whether the UE category supports SF = 1.

Number of E-UCCH Per TTI

Range: 1 to 5

Displays the number of E-UCCH.
