DOCSIS 4.0 Upstream Grant

Grant Settings

Grant Index

Range: 0 to 19

Default: 0

Gets the grant index of DOCSIS 4.0 Upstream carrier

Payload

Gets or sets the data payload for current grant. Click the right button to open payload dialog.

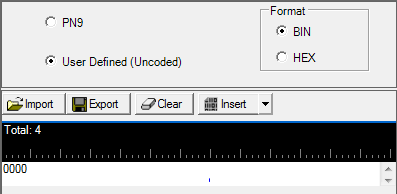

There are two radio buttons at the top of this dialog.

• PN9: The payload of this profile is 14232-bit with the content to be repeated PN9.
• User Defined (Unicoded): The payload is from the payload editor. If the number of bits in the editor is less than the granted bits, it will repeat from the start again.

Start Frame Index

Gets or sets the frame start index of current grant. This parameter determines the start position of the grant from the angle of time domain.

Minislot Start Index

Gets or sets the minislot start index of current grant. This parameter determines the start position of the grant from the angle of frequency domain.

Total Number of Minislots

Gets the total number of minislots in current grant.
