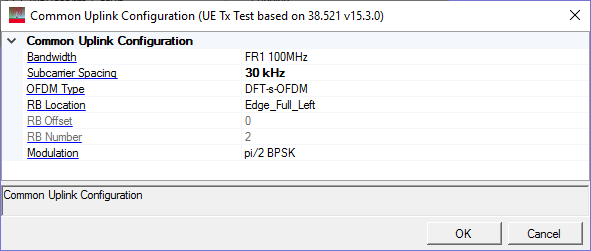

Common UL Config

Bandwidth

Choices:

Downlink: Based on the Table 5.3.2-1 and 5.3.2-2 in 38.104.

Uplink: Based on the Table 5.3.2-1 in 38.101-1 and 38.101-2.

Select the Bandwidth configuration for the carrier.

Subcarrier Spacing

Choices: Based on the Table 6.1-1 in 38.521

Select the Subcarrier Spacing.

OFDM Type

Choices: DFT-s-OFDM | CP-OFDM

Select the OFDM Type for uplink.

RB Location

Choices: Based on the Table 6.1-1 in 38.521

Select the RB Location for Common uplink config.

RB Offset

Display the RB Offset based on the Table 6.1-1 in 38.521.

RB Number

Display the RB Number based on the Table 6.1-1 in 38.521.

Modulation

Choices: pi/2 BPSK | QPSK | 16QAM | 64QAM | 256QAM for uplink carrier; QPSK | 16QAM | 64QAM | 256QAM for downlink carrier

Select the Modulation type to be configured for current carrier.
