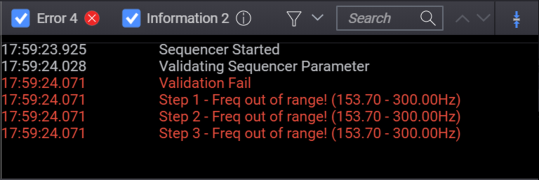

Log Panel

In the Sequencer view and Avionics view, display the information of current status of the execution and error message of the execution.

Error	Check to show error messages on the Log panel. The error message will be displayed in red. The number next to the Error denotes the number of error messages.
Information	Check to show information on the Log panel. The number next to the Information denotes the number of information.
	Filter the messages in the Log panel either by source or keyword.
	Enter the keyword in the search field and the match characters of messages will be highlighted in blue. Use the up and down button to go to previous or next match message.
	Keep the latest message in view in the Log panel.

Clear All Messages in the Log Panel

Right click on the Log panel and select Clear Log Panel, or press Alt + C using your keyboard.

Copy a Message

Click the message row that you want to copy, right click and select Copy, or press Ctrl + C using your keyboard.

Export Filtered Log

Right click on the Log panel and select Export Filtered Log, or press Ctrl + L using your keyboard.
