Step 2 Select the Discharge Operation

To select and configure the Discharge operation...

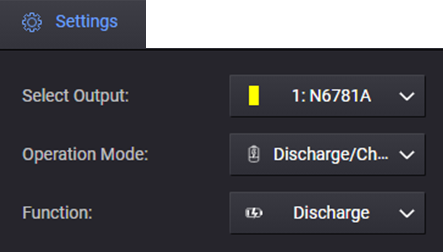

• You can select the Discharge operation from the Settings area, or click on the Discharge/Charge icon in the display area.

or

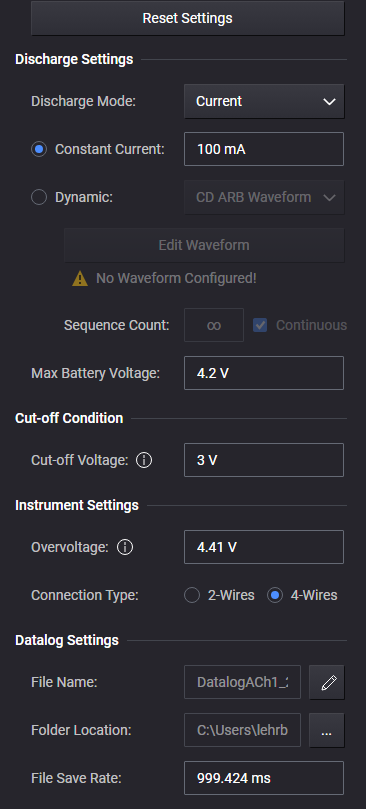

• Specify the discharge settings for the battery that you have connected to your instrument. In this example you are creating a CD Arb waveform that will be used to create the profile for your battery emulator. Specify the following parameters for the discharge operation.


Go to Step 3
