Step 3. Select the Discharge Operation

To select and configure the Discharge operation.

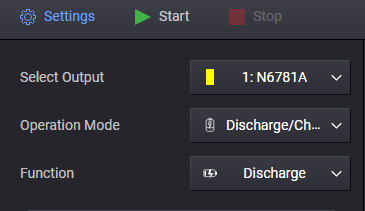

• You can select the Discharge/Charge operation mode from the Settings panel, or click the Discharge/Charge icon in the display area. Then select Discharge function.


  or

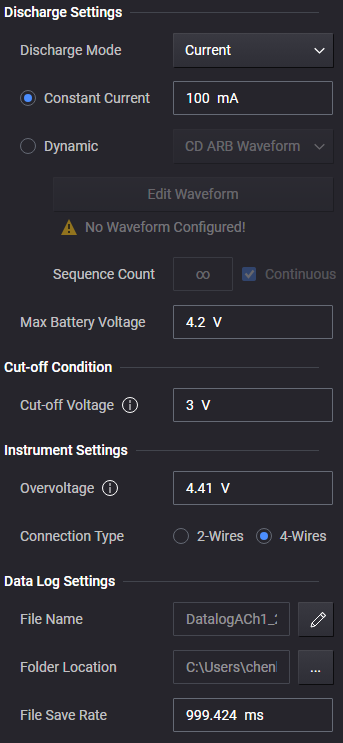

• Specify the discharge settings for the battery that you have connected to your instrument. In this example you are creating a CD Arb waveform that will be used to create the profile for your battery emulator. Specify the following parameters for the discharge operation.







Go to Step 4.
